Product Summary

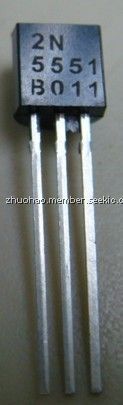

The 2N5551B011 is an Amplifier Transistor.

Parametrics

2N5551B011 absolute maximum ratings: (1)Collector - Emitter Voltage, VCEO: 140 to 160 Vdc; (2)Collector - Base Voltage, VCBO: 160 to 180 Vdc; (3)Emitter - Base Voltage, VEBO: 6.0 Vdc; (4)Collector Current - Continuous, IC: 600 mAdc; (5)Total Device Dissipation, PD: 625mW; (6)Operating and Storage Junction Temperature Range, TJ, Tstg: -55 to +150℃.

Features

2N5551B011 features: (1)Pb-Free Packages are Available; (2)Device Marking: Device Type.

Diagrams

2N5551B011 circuit diagram
