Product Summary

The CC2500RTKR is a low-cost true single chip 2.4 GHz transceiver designed for very low-power wireless applications. The circuit is intended for the 2400-2483.5 MHz ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency band. The RF transceiver is integrated with a highly configurable baseband modem. The modem supports various modulation formats and has a configurable data rate up to 500 kBaud. The CC2500RTKR provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication, and wake-on-radio. The applications of the CC2500RTKR include: 2400-2483.5 MHz ISM/SRD band systems, Consumer Electronics, Wireless game controllers, Wireless audio, Wireless keyboard and mouse.

Parametrics

CC2500RTKR absolute maximum ratings: (1)Supply voltage: –0.3 to 3.6V; (2)Voltage on any digital pin: –0.3 to VDD+0.3,max 3.6V; (3)Voltage on the pins RF_P, RF_N and DCOUPL: –0.3 to 2.0V; (4)Voltage ramp-up rate: the max value is 120kV/μs; (5)Input RF level: +10dBm; (6)Storage temperature range: –50 to 150℃; (7)Solder reflow temperature: 260℃; (8)ESD: <500V.

Features

CC2500RTKR features: (1)High sensitivity (–104 dBm at 2.4 kBaud,1% packet error rate); (2)Programmable output power up to +1 dBm; (3)Programmable data rate from 1.2 to 500 kBaud; (4)Frequency range: 2400 – 2483.5 MHz; (5)OOK, 2-FSK, GFSK, and MSK supported; (6)Integrated analog temperature sensor Digital Features; (7)Efficient SPI interface: All registers can be programmed with one burst transfer; (8)Digital RSSI output; (9)Programmable channel filter bandwidth; (10)Programmable Carrier Sense (CS) indicator.

Diagrams

CC2500RTKR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

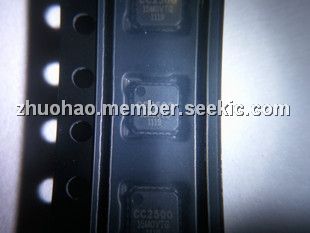

CC2500RTKR
CC2500RTKR

Texas Instruments

RF Transceiver CC2500 TAPE AND REEL

Data Sheet

0-1: $2.32
1-25: $1.87
25-100: $1.70
100-250: $1.54
CC2500RTKRG3
CC2500RTKRG3

Texas Instruments

RF Transceiver Lo Cost Low-Power 2.4 GHz RF Xceiver

Data Sheet

0-2340: $1.08
2340-3000: $1.06
3000-6000: $1.05
