Product Summary

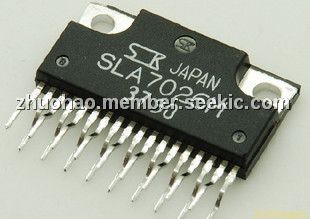

The SLA7026M is a 2-Phase Stepper Motor Unipolar Driver IC.

Parametrics

SLA7026M absolute maximum ratings: (1)Motor supply voltage:46 V; (2)FET Drain-Source voltage:100 V; (3)Control supply voltage: 46 V; (4)TTL input voltage:7 V; (5)Reference voltage:2 V; (6)Output current:3 A; (7)Channel temperature:+150℃; (8)Storage temperature:-40 to +150℃.

Features

SLA7026M features: (1)control supply current:10 to 15mA; (2)control supply voltage:10 to 44V; (3)FET drain-source voltage:100V; (4)FET ON voltage:0.85V; (5)FET drain leakage current:4mA; (6)FET diode forward voltage:2.3V.

Diagrams

SLA7026M block diagram
