Product Summary

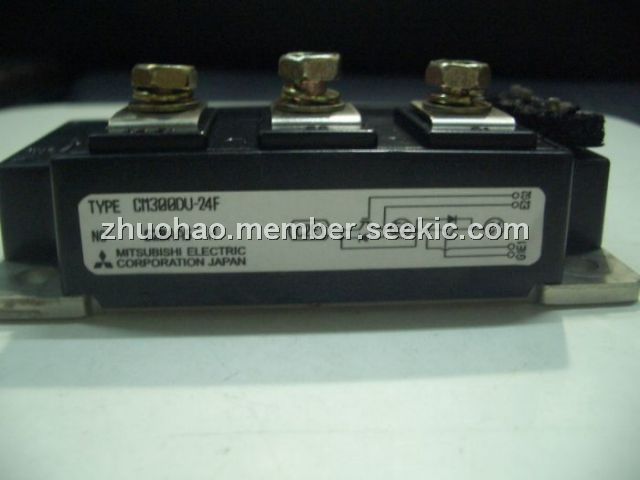

The CM300DU-24F is an IGBT module. The applications of it are General purpose inverters and Servo controls, etc.
Parametrics
CM300DU-24F absolute maximum ratings: (1)Collector-emitter voltage at G-E Short:1200V; (2)Gate-emitter voltage at C-E Short:±20V; (3)Collector current: at TC = 25℃:300A, at Pulse:600A; (4)Emitter current: at TC = 25℃:300A, at Pulse:600A; (5)Maximum collector dissipation at TC = 25℃: 960W; (6)Junction temperature: -40℃ to +150℃; (7)Storage temperature: -40℃ to +125℃; (8)Isolation voltage at Main terminal to base plate, AC 1 min.: 2500V; (9)Torque strength: Main terminals M6 screw: 3.5N.m to 4.5N.m, Mounting M6 screw: 3.5N.m to 4.5N.m; (10)Weight: 580g.
Features
CM300DU-24F features: (1)IC:300A; (2)VCES:1200V; (3)Insulated Type; (4)2-elements in a pack.
Diagrams
<IMG border=0 alt="CM300DU-24F circuit diagram" src="http://www.seekic.com/uploadfile/ic-mfg/201283025455870.jpg">
