Product Summary

The EXB841 is an insulated gate bipolar transistor. It is used in small, low-noise, high-performance power supplies, inverters, uniterruptable power supplies, and motor speed controls. The applications of the EXB841 include: general-purpose inverter and motor control, servo control, uninterruptable power supplies(UPS), welding machines.

Parametrics

EXB841 absolute maximum ratings: (1)supply voltage:25V; (2)photocoupler input current:25mA; (3)forward bias output current:4.0A; (4)reverse bias output current:4.0A; (5)input/output isolation voltage:2500V; (6)operating surface temperature:-25℃ to +85℃; (7)storage temperature:-25℃ to +125℃.

Features

EXB841 features: (1)builit-in photocoupler for high isolation voltage:2500V AC for one minute; (2)single supply operation; (3)built-in overcurrent protection circuit; (4)overcurrent detection output; (5)SIL package for high-density mounting.

Diagrams

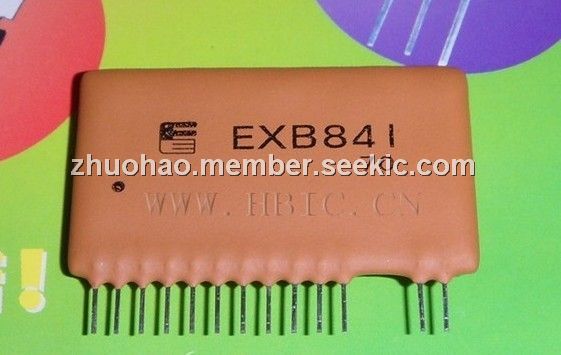

EXB841 diagram
