Product Summary

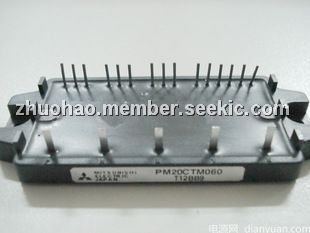

The PM20CTM060 is a MITSUBISHI intelligent power module. It is used in Air conditioner, mortor control.
Parametrics
PM20CTM060 absolute maximum ratings: (1)VCES Collector-emitter voltage: 600V; (2)±IC Collector current: 20A; (3)±ICP Collector current (peak): 40A; (4)PC Collector dissipation: 56W; (5)Tj Junction temperature: -20 to 125℃.
Features
PM20CTM060 features: (1)600V, 20A Current-sense 6kHz IGBT type inverter; (2)Built in IGBT gate drive circuit; (3)Built in Faule OC, SC, OT & UV protection Fault output; (4)1.5kW class inverter application; (5)UL Recognized: Yellow Card No. E80276 (N), File No. E80271.
