Product Summary
The MMA7260 is a ±1.5g to 6g three axis low-g micromachined accelerometer. The MMA7260 low cost capacitive micromachined accelerometer features signal conditioning, a 1-pole low pass filter, temperature compensation and g-Select which allows for the selection among 4 sensitivities. Zero-g offset full scale span and filter cut-off are factory set and require no external devices. The applications of the MMA7260 includes (1)HDD MP3 Player: Freefall Detection; (2)Laptop PC: Freefall Detection, Anti-Theft; (3)Cell Phone: Image Stability, Text Scroll, Motion Dialing, E-Compass; (4)Pedometer: Motion Sensing; (5)PDA: Text Scroll; (6)Navigation and Dead Reckoning: E-Compass Tilt Compensation; (7)Gaming: Tilt and Motion Sensing, Event Recorder; (8)Robotics: Motion Sensing.
Parametrics
MMA7260 absolute maximum ratings: (1)Maximum Acceleration (all axis) gmax: ±5000 g; (2)Supply Voltage VDD: –0.3 to +3.6 V; (3)Drop Test(1), Ddrop: 1.8 m; (4)Storage Temperature Range Tstg: –40 to +125 ℃.
Features
MMA7260 features: (1)Selectable Sensitivity (1.5g/2g/4g/6g); (2)Low Current Consumption: 500μA; (3)Sleep Mode: 3μA; (4)Low Voltage Operation: 2.2 V 3.6 V; (5)6mm x 6mm x 1.45mm QFN; (6)High Sensitivity (800 mV/g @ 1.5g); (7)Fast Turn On Time; (8)Integral Signal Conditioning with Low Pass Filter; (9)Robust Design, High Shocks Survivability; (10)Pb-Free Terminations; (11)Environmentally Preferred Package; (12)Low Cost.

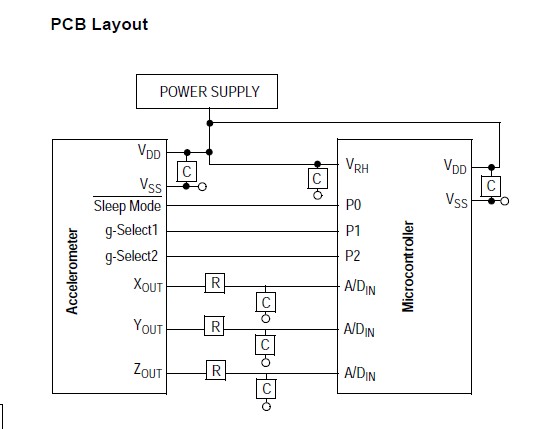

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MMA7260Q |
Freescale Semiconductor |
Board Mount Accelerometers 1.5G Sensor Accel 3 Axis |
Data Sheet |
Negotiable |
|
||||
|
MMA7260QR2 |
Freescale Semiconductor |
Board Mount Accelerometers 1.5G XYZ LEADS |
Data Sheet |
Negotiable |
|
||||
|
MMA7260QT |
Freescale Semiconductor |
Board Mount Accelerometers 1.5G XYZ QFN 16 LDS |
Data Sheet |
Negotiable |
|
||||
