Product Summary

The CC1000 is a true single-chip UHF transceiver designed for very low power and very low voltage wireless applications. The CC1000 is mainly intended for the ISM(Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 315, 433, 868 and 915 MHz, but can easily be programmed for operation at other frequencies in the 300-1000 MHz range. The applications of the CC1000 include: (1)Very low power UHF wireless data transmitters and receivers; (2)315 / 433 / 868 and 915 MHz ISM/SRD band systems; (3)RKE -Two-way Remote Keyless Entry; (4)Home automation; (5)Wireless alarm and security systems; (6)AMR-Automatic Meter Reading; (7)Low power telemetry; (8)Game Controllers and advanced toys.

Parametrics

CC1000 absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to 5.0 V; (2)Voltage on any pin: -0.3 to VDD+0.3, max 5.0 V; (3)Input RF level: 10 dBm; (4)Storage temperature range(TSSOP) -50 to 150 ℃; (5)Shelf life (UltraCSP) 1 year; (6)Reflow soldering temperature(TSSOP): 260 ℃; (7)Peak reflow soldering temperature(UltraCSP): 255 ℃.

Features

CC1000 features: (1)True single chip UHF RF transceiver; (2)Very low current consumption; (3)Frequency range 300 to 1000 MHz; (4)Integrated bit synchroniser; (5)High sensitivity (typical -110 dBm at 2.4 kBaud); (6)Programmable output power -20 to 10 dBm; (7)Small size (TSSOP-28 or UltraCSP package); (8)Low supply voltage (2.1 V to 3.6 V); (9)Very few external components required; (10)No external RF switch / IF filter required; (11)RSSI output; (12)Single port antenna connection; (13)FSK data rate up to 76.8 kBaud; (14)Complies with EN 300 220 and FCC CFR47 part 15; (15)Programmable frequency in 250 Hz steps makes crystal temperature drift compensation possible without TCXO; (16)Suitable for frequency hopping protocols.

Diagrams

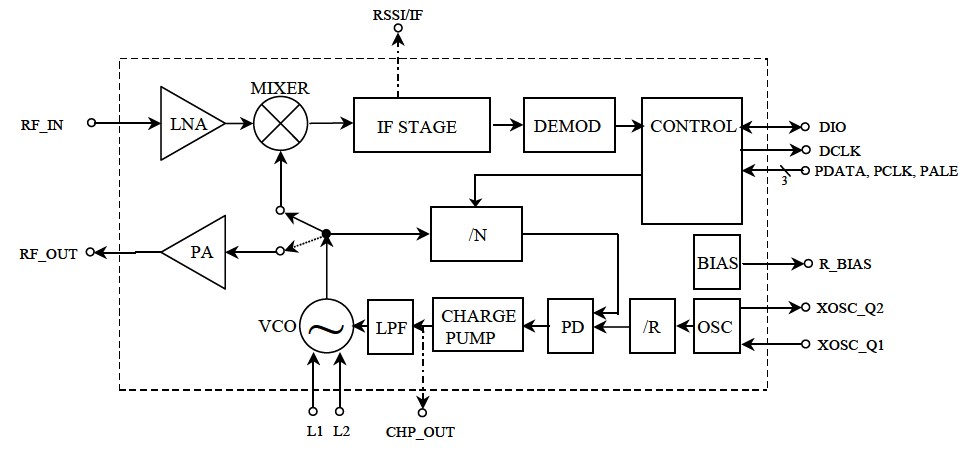

CC1000 diagram
