Product Summary

The CC1020RSSR is a true single-chip UHF transceiver designed for very low power and very low voltage wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 402, 424, 426, 429, 433, 447, 449, 469, 868 and 915 MHz, but can easily be programmed for multi-channel operation at other frequencies in the 402 -470 and 804 - 940 MHz range. The CC1020RSSR is especially suited for narrowband systems with channel spacings of 12.5 or 25 kHz complying with ARIB STD T-67 and EN 300 220. The applications of the CC1020RSSR include: (1)Narrowband low power UHF wireless data transmitters and receivers with channel spacings as low as 12.5 and 25 kHz; (2)402 / 424 / 426 / 429 / 433 / 447 / 449 / 469 / 868 and 915 MHz ISM/SRD band systems; (3)AMR-Automatic Meter Reading; (4)Wireless alarm and security systems; (5)Home automation; (6)Low power telemetry.

Parametrics

CC1020RSSR absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to 5.0 V All supply pins must have the same voltage; (2)Voltage on any pin: -0.3 to VDD+0.3, max 5.0 V; (3)Input RF level: 10 dBm; (4)Storage temperature range: -50 to 150 ℃; (5)Package body temperature: 260 ℃; (6)Humidity non-condensing: 5 to 85 %; (7)ESD(Human Body Model): ±1kV All pads except RF; ±0.4kV RF Pads.

Features

CC1020RSSR features: (1)True single chip UHF RF transceiver; (2)Frequency range 402 MHz - 470 MHz and 804 MHz - 940 MHz; (3)High sensitivity (up to 18 dBm for a 12.5 kHz channel); (4)Programmable output power; (5)Low current consumption (RX: 19.9 mA); (6)Low supply voltage (2.3 V to 3.6 V); (7)No external IF filter needed; (8)Low-IF receiver; (9)Very few external components required; (10)Small size (QFN 32 package); (11)Pb-free package; (12)Digital RSSI and carrier sense indicator.

Diagrams

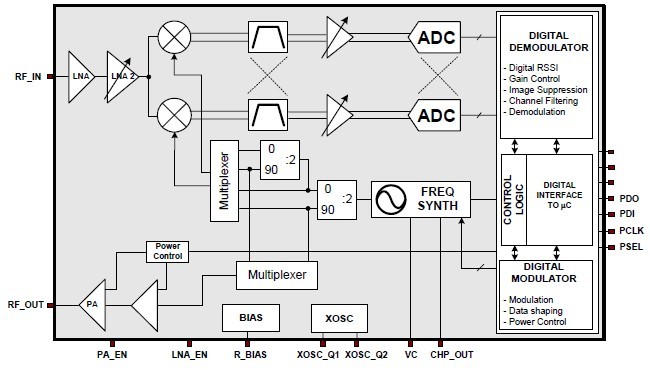

CC1020RSSR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

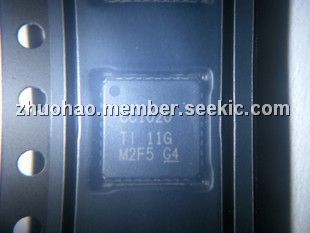

CC1020RSSR
CC1020RSSR

Texas Instruments

RF Transceiver TAPE/REEL CC1020

Data Sheet

Negotiable
