Product Summary

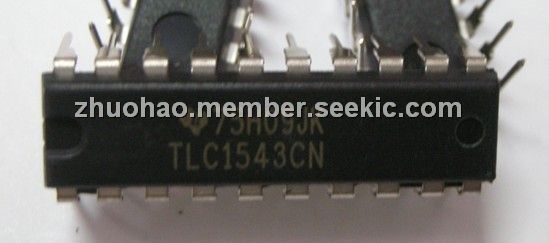

The TLC1543CN is a 10-bit analog-to-digital converter with serial control and 11 analog inputs. The TLC1543CN is a CMOS 10-bit switched-capacitor successive-approximation analog-to-digital converter. The TLC1543CN has three inputs and a 3-state output [chip select (CS), input-output clock (I/O CLOCK), address input (ADDRESS), and data output (DATA OUT)] that provide a direct 4-wire interface to the serial port of a host processor. These devices allow high-speed data transfers from the host.
Parametrics
TLC1543CN absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 6.5 V; (2)Input voltage range, VI: –0.3 V to VCC + 0.3 V; (3)Output voltage range, VO: –0.3 V to VCC + 0.3 V; (4)Positive reference voltage, Vref+: VCC + 0.1 V; (5)Negative reference voltage, Vref: –0.1 V; (6)Peak input current (any input): ±20 mA; (7)Peak total input current (all inputs): ±30 mA.
Features
TLC1543CN features: (1)10-Bit Resolution A/D Converter; (2)11 Analog Input Channels; (3)Three Built-In Self-Test Modes; (4)Inherent Sample-and-Hold Function; (5)Total Unadjusted Error ±1 LSB Max; (6)On-Chip System Clock; (7)End-of-Conversion (EOC) Output; (8)Terminal Compatible With TLC542; (9)CMOS Technology.

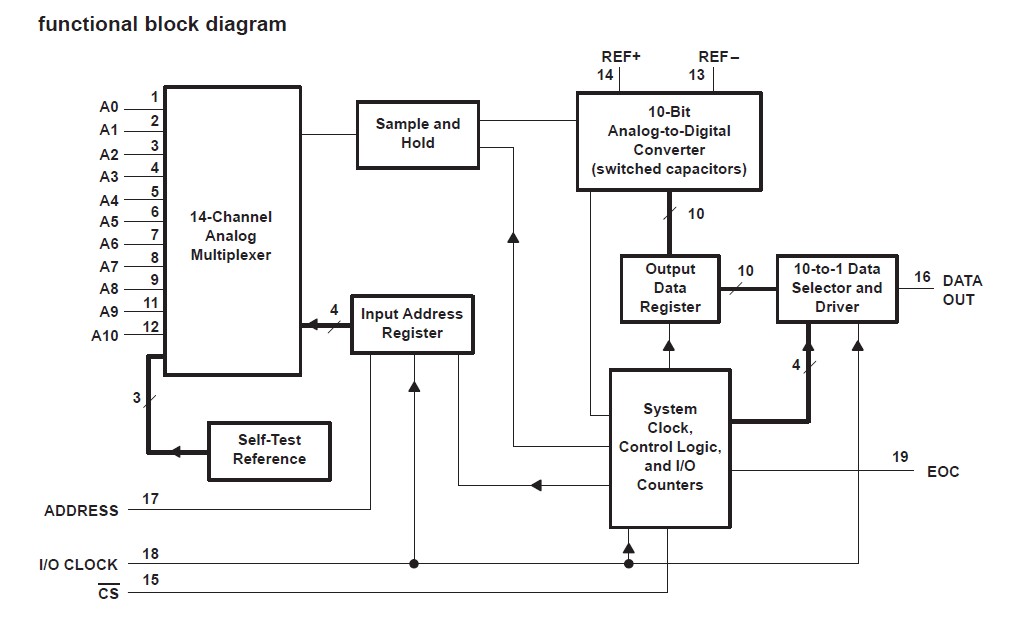

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLC1543CN |
Texas Instruments |
ADC (A/D Converters) 10bit A/D w/Ser In |
Data Sheet |
|
|
||||||||||||
|
TLC1543CNE4 |
Texas Instruments |
ADC (A/D Converters) 10Bit 38kSPS SerOut On-Chip Sys Clk 11Ch |
Data Sheet |
|
|
||||||||||||
