Product Summary

The WM8805GEDS is a high performance consumer mode S/PDIF transceiver with support for 8 received Channels and 1 transmitted Channel. A crystal derived, or externally provided high quality master clock is used to allow low jitter recovery of S/PDIF supplied master clocks. The WM8805GEDS may be used under software control or stand alone hardware control modes. In software control mode, both 2-wire with read back and 3-wire interface modes are supported. The applications of the WM8805GEDS include: Surround Sound AV processors and Hi-Fi systems, Music industry applications, DVD-P/DVD-RW, Digital TV.

Parametrics

WM8805GEDS absolute maximum ratings: (1)Digital core and I/O buffer supply voltage: -0.3V to +5V; (2)PLL supply voltage: -0.3V to +5V; (3)Voltage range digital inputs: DGND -0.3V to DVDD +0.3V; (4)Master Clock Frequency: 37MHz; (5)Operating temperature range, TA: -25℃ +85℃; (6)Storage temperature: -65℃ +150℃.

Features

WM8805GEDS features: (1)S/PDIF (IEC60958-3) compliant; (2)Advanced jitter attenuating PLL with low intrinsic period jitter of 50 ps RMS; (3)S/PDIF recovered clock using PLL, or stand alone crystal derived clock generation; (4)Supports 10 to 27MHz crystal clock frequencies; (5)2-wire / 3-Wire serial or hardware control interface; (6)8 channel receiver input and 1 channel transmit output; (7)Auto frequency detection / synchronisation; (8)Selectable output status data bits; (9)Up to 8 configurable GPO pins; (10)De-emphasis flag output; (11)Non-audio detection including DOLBYTM and DTSTM; (12)Channel status changed flag; (13)Configurable clock distribution with selectable output MCLK rate of 512fs, 256fs, 128fs and 64fs; (14)2.7 to 3.6V digital and PLL supply voltages; (15)28-lead SSOP package.

Diagrams

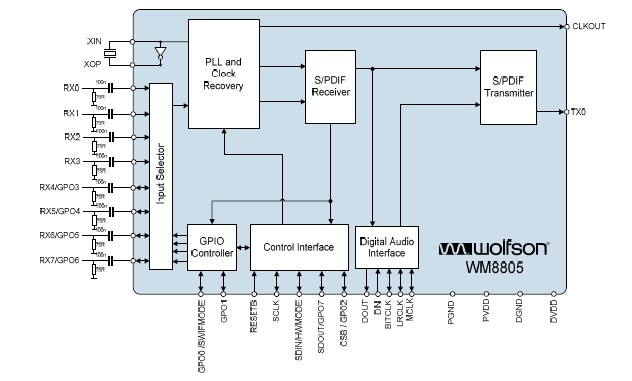

WM8805GEDS block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
WM8805GEDS
WM8805GEDS

Wolfson Microelectronics

Audio Transmitters, Receivers, Transceivers 8:1 Digi. Interface Transcvr with PLL

Data Sheet

Negotiable
WM8805GEDS/R
WM8805GEDS/R

Wolfson Microelectronics

Audio Transmitters, Receivers, Transceivers 8:1 Digi. Interface Transcvr with PLL

Data Sheet

0-2000: $1.06
2000-4000: $1.02
WM8805GEDS/RV
WM8805GEDS/RV

Wolfson Microelectronics

Audio Transmitters, Receivers, Transceivers 8:1 Digi. Interface Transcvr with PLL

Data Sheet

0-2000: $0.95
2000-4000: $0.92
4000-6000: $0.89
6000-8000: $0.86
WM8805GEDS/V
WM8805GEDS/V

Wolfson Microelectronics

Encoders, Decoders, Multiplexers & Demultiplexers 8:1 Digi. Interface Transcvr with PLL

Data Sheet

0-1: $1.78
1-50: $1.54
50-100: $1.23
100-500: $1.16
