Product Summary

The CC430F6137 is an ultralow-power microcontroller system-on-chip with integrated RF transceiver cores consists of several devices featuring different sets of peripherals targeted for a wide range of applications. The CC430F6137, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The CC430F6137 features the powerful MSP430 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency.

Parametrics

CC430F6137 absolute maximum ratings: (1)Voltage applied at DVCC and AVCC pins to VSS: –0.3 V to 4.1 V; (2)Voltage applied to any pin (excluding VCORE, RF_P, RF_N, and R_BIAS): –0.3 V to (VCC + 0.3 V), 4.1 V Max; (3)Voltage applied to VCORE, RF_P, RF_N, and R_BIAS: –0.3 V to 2.0 V; (4)Input RF level at pins RF_P and RF_N: 10 dBm; (5)Diode current at any device terminal: ±2 mA; (6)Storage temperature range, Tstg: –55℃ to 105℃; (7)Maximum junction temperature, TJ: 95℃.

Features

CC430F6137 features: (1)True System-on-Chip (SoC) for Low-Power Wireless Communication Applications; (2)Wide Supply Voltage Range: 1.8 V to 3.6 V; (3)Ultralow Power Consumption; (4)MSP430 System and Peripherals; (5)High-Performance Sub-1-GHz RF Transceiver Core.

Diagrams

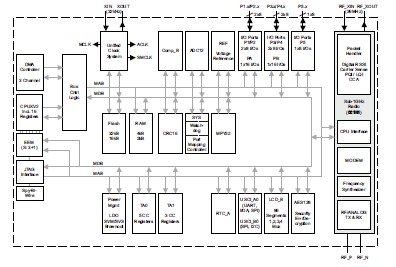

CC430F6137 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CC430F6137IRGC
CC430F6137IRGC

Texas Instruments

RF Microcontrollers (MCU) 16B Ultra-Lo-Pwr MCU 32KB Flash

Data Sheet

0-1: $4.65
1-10: $4.18
10-25: $3.44
25-50: $3.16

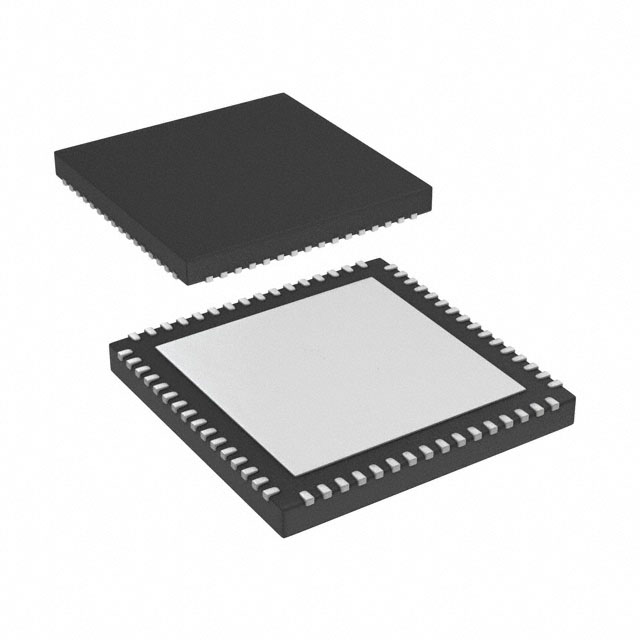

CC430F6137IRGCR
CC430F6137IRGCR

Texas Instruments

RF Microcontrollers (MCU) 16B Ultra-Lo-Pwr MCU 32KB Flash

Data Sheet

0-1505: $2.47
1505-2000: $2.47
2000-2500: $2.38
CC430F6137IRGCT
CC430F6137IRGCT

Texas Instruments

RF Microcontrollers (MCU) 16B Ultra-Low-Pwr MCU,32KB Fl,2KB RAM

Data Sheet

0-148: $3.16
148-250: $2.89
250-500: $2.69
500-1000: $2.47
