INA105

monolithic Gain = 1 differential amplifier, 1MHZ, 8-pin DIP, ±18V, INA105

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: INA105

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rumi Guo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-28

From Other Seller

Part Number:INA105
US $1.00 - 2.00
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

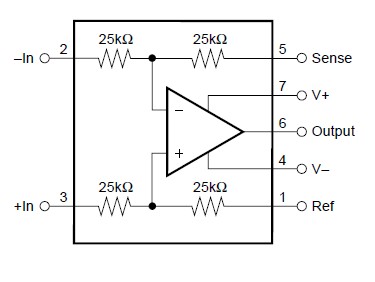

The INA105 is a monolithic Gain = 1 differential amplifier consisting of a precision op amp and on-chip metal film resistors. The resistors are laser trimmed for accurate gain and high common-mode rejection. Excellent TCR tracking of the resistors maintains gain accuracy and common-mode rejection over temperature. The applications of the INA105 include differential amplifier, instrumentation amplifier building block, unity-gain inverting amplifier, gain-of-1/2 amplifier, noninverting gain-of-2 amplifier, average value amplifier, absolute value amplifier, summing amplifier, synchronous demodulator, current receiver with compliance to rails, 4ma to 20ma transmitter, voltage-controlled current source and all-pass filters.

Parametrics

INA105 absolute maximum ratings: (1)Supply: ±18V; (2)Input Voltage Range: ±VS; (3)Operating Temperature Range: –55℃ to +125℃; (4)Storage Temperature Range: –65℃ to +150℃; (5)Lead Temperature (soldering, 10s): +300℃; (6)Wave Soldering (3s, max): +260℃; (7)Output Short Circuit to Common: Continuous.

Features

INA105 features: (1)CMR 86dB min over temperature; (2)gain error: 0.01% max; (3)nonlinearity: 0.001% max; (4)no external adjustments required; (5)easy to use; (6)complete solution; (7)highly versatile; (8)low cost; (9)plastic DIP, TO-99 hermetic metal,and SO-8 SOIC packages.
