Product Summary

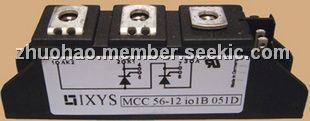

The MCC56-12IO1B is a Thyristor Module. The applciations of MCC56-12IO1B are: DC motor control, Softstart AC motor controller, Light, heat and temperature control.
Parametrics
MCC56-12IO1B absolute maximum ratings: (1)ITRMS, IFRMS:100 A; (2)ITAVM, IFAVM:64 A; (3)PGM: 10W; (4)PGAV:0.5 W; (5)VRGM:10 V; (6)TVJ:-40 to +125℃; (7)TVJM:125℃; (8)Tstg:-40 to +125℃; (9)Visol:3000V or 3600V; (10)Weight:90g; (11)(di/dt)cr:150 or 500A/us; (12)(dv/dt)cr:1000V/us.
Features
MCC56-12IO1B features: (1)International standard package, JEDEC TO-240 AA; (2)Direct copper bonded Al2O3 -ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V; (5)UL registered, E 72873; (6)Gate-cathode twin pins for version 1B.
Diagrams
<IMG border=0 alt="MCC56-12IO1B diagram" src="http://www.seekic.com/uploadfile/ic-mfg/2012831125281.jpg">
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCC56-12io1B |
Ixys |
Discrete Semiconductor Modules 56 Amps 1200V |
Data Sheet |
Negotiable |
|
||||
