Product Summary

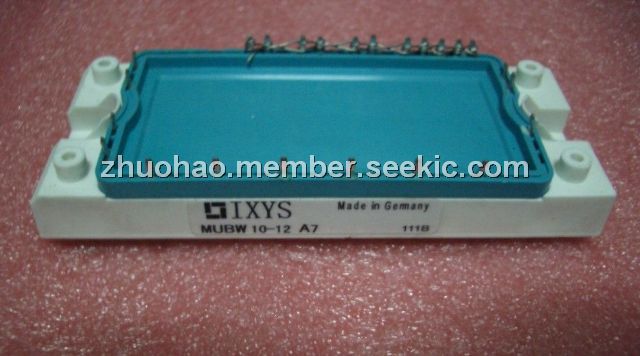

The MUBW10-12A7 is a Converter - Brake - Inverter Module. The applications of it include: Input from single or three phase grid, Three phase synchronous or asynchronous motor, electric braking operation.
Parametrics
MUBW10-12A7 absolute maximum ratings: (1)TVJ: -40 to +125 ℃; (2)TJM: 150 ℃; (3)Tstg: -40 to +125 ℃; (4)VISOL: 2500 V; (5)Md: 2.7 to 3.3 Nm.
Features
MUBW10-12A7 features: (1)High level of integration - only one power semiconductor module required for the whole drive; (2)Fast rectifier diodes for enhanced EMC behaviour; (3)NPT IGBT technology with low saturation voltage, low switching; (4)losses, high RBSOA and short circuit ruggedness; (5)Epitaxial free wheeling diodes with Hiperfast and soft reverse recovery; (6)Industry standard package with insulated copper base plate and soldering pins for PCB mounting; (7)Temperature sense included.
Diagrams
<IMG border=0 alt="MUBW10-12A7 diagram" src="http://www.seekic.com/uploadfile/ic-mfg/201283111859713.jpg">
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MUBW10-12A7 |
Ixys |
Discrete Semiconductor Modules 10 Amps 1200V |
Data Sheet |
Negotiable |
|
||||||
