Product Summary

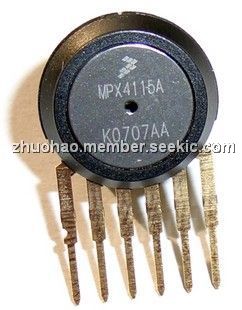

The MPX4115A is an integrated silicon pressure sensor. It is designed to sense absolute air pressure in an altimeter or barometer(BAP) applications. Motorola BAP sensor integrates on–chip, bipolar op amp circuitry and thin film resistor networks to provide a high level analog output signal and temperature compensation. The small form factor and high reliability of on–chip integration makes the MPX4115A a logical and economical choice for application designers. The MPX4115A is used in Altimeter, Barometer.
Parametrics
MPX4115A absolute maximum ratings: (1)Overpressure(2) (P1 > P2) Pmax: 400 kPa; (2)Burst Pressure(2) (P1 > P2) Pburst: 1000 kPa; (3)Storage Temperature Tstg: –40℃ to +125℃; (4)Operating Temperature TA: –40℃ to +125℃.
Features
MPX4115A features: (1)1.5% Maximum Error over 0℃ to 85℃; (2)Ideally suited for Microprocessor or Microcontroller-Based Systems; (3)Patented Silicon Shear Stress Strain Gauge; (4)Available in Absolute, Differential and Gauge Configurations; (5)Durable Epoxy Unibody Element; (6)Easy-to-use Chip Carrier Option.

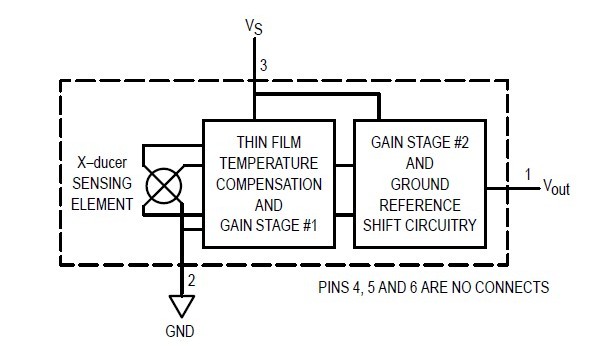

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MPX4115A |
Freescale Semiconductor |
Board Mount Pressure / Force Sensors PRES SEN INTEG 115KPA |
Data Sheet |
|
|
||||||||||||
 |
MPX4115AP |
Freescale Semiconductor |
Board Mount Pressure / Force Sensors PRES SEN INTEG 115KPA |
Data Sheet |
|
|
||||||||||||
 |
MPX4115AS |
Freescale Semiconductor |
Board Mount Pressure / Force Sensors PRESS SEN INTEG 115KPA |
Data Sheet |
|
|
||||||||||||
