Product Summary

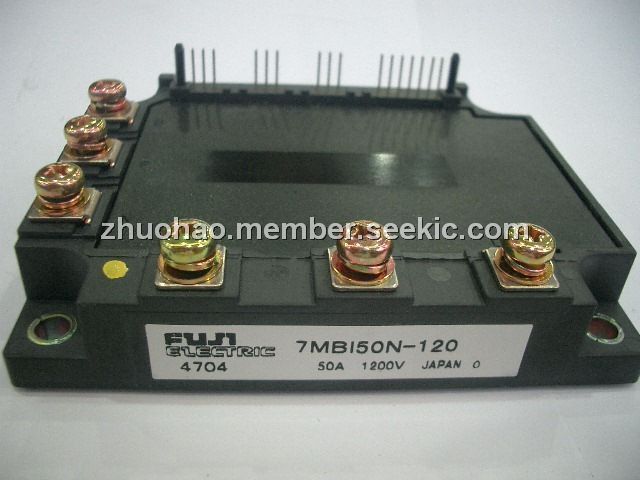

The 7MBI50N-120 is an IGBT module. It is used in Inverter for Motor Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.

Parametrics

7MBI50N-120 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 1200V; (2)Gate -Emitter Voltage, VGES: ± 20V; (3)Operating Junction Temperature, Tj: +150℃; (4)Storage Temperature, TStg: -40 ~ +125℃.

Features

7MBI50N-120 features: (1)Including Brake Chopper; (2)Square RBSOA; (3)Low Saturation Voltage; (4)Overcurrent Limiting Function.

Diagrams

<IMG border=0 alt="7MBI50N-120 diagram" src="http://www.seekic.com/uploadfile/ic-mfg/2012831143315.jpg">
