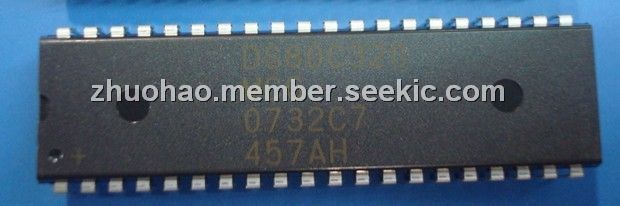

Product Summary
The ds80c320 is a high-speed/low-power microcontroller. Wasted clock and memory cycles have been removed using a redesigned processor core. As a result, every 8051 instruction is executed between 1.5 and 3 times faster than the original for the same crystal speed. Typical applications see a speed improvement of 2.5 times using the same code and same crystal. The ds80c320 offers a maximum crystal rate of 33MHz, resulting in apparent execution speeds of 82.5MHz(approximately 2.5X).
Parametrics
ds80c320 absolute maximum ratings: (1)Operating Supply Voltage VCC: 2.7 to 5.5 V; (2)Power-Fail Warning Voltage VPFW: 2.6 to 2.8 V; (3)Minimum Operating Voltage VRST: 2.5 to 2.7 V 1, 12; (4)Supply Current Active Mode at 18MHz ICC: 10 mA; (5)Supply Current Idle Mode at 18MHz IIDLE: 6 mA; (6)Bandgap Reference Disabled ISTOP: 0.1 μA; (7)Supply Current Stop Mode, Bandgap Reference Enabled ISPBG: 40 μA 4, 10; (8)Input Low Level VIL: -0.3 to +0.2 x VCC V.
Features
ds80c320 features: (1)80C32-Compatible; (2)High-Speed Architecture; (3)High-Integration Controller; (4)Two Full-Duplex Hardware Serial Ports; (5)13 Total Interrupt Sources with Six External; (6)Available in 40-Pin DIP, 44-Pin PLCC, and 44-Pin TQFP.

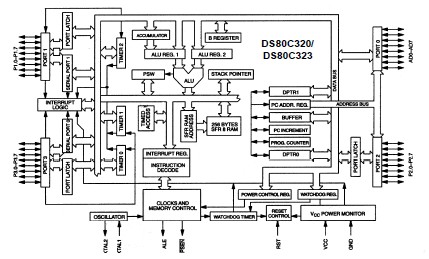

Diagrams
