Product Summary

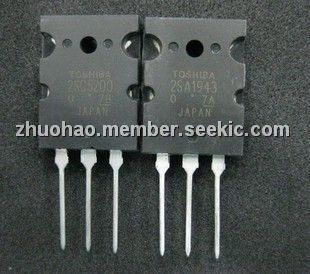

The 2SC5200 is a transistor. It is suitable for Power Amplifier Applications.

Parametrics

2SC5200 absolute maximum ratings: (1)Collector-base voltage, VCBO: 230 V; (2)Collector-emitter voltage, VCEO: 230 V; (3)Emitter-base voltage, VEBO: 5 V; (4)Collector current, IC: 15 A; (5)Base current, IB: 1.5 A; (6)Collector power dissipation, PC: 150 W; (7)Junction temperature, Tj: 150℃; (8)Storage temperature range, Tstg: -55 to 150℃.

Features

2SC5200 features: (1)High breakdown voltage: VCEO = 230 V (min); (2)Complementary to 2SA1943; (3)Suitable for use in 100-W high fidelity audio amplifier’s output stage.

Diagrams

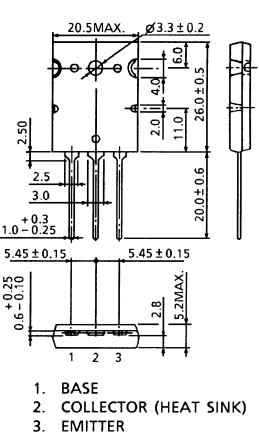

2SC5200 dimensions
