Product Summary

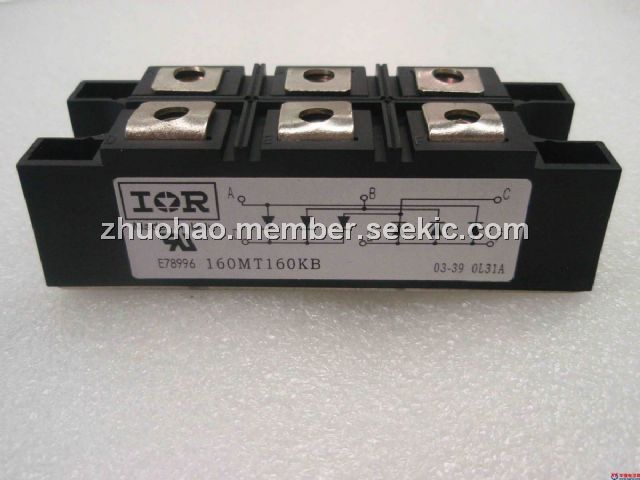

The 160MT160KB is a extremely compact, encapsulated three phase bridge rectifier offering efficient and reliable operation. It is intended for use in general purpose and heavy duty applications.

Parametrics

160MT160KB absolute maximum ratings: (1)IO Maximum DC output current: 160 (200) A; (2)I2√t Maximum I2√t for fusing: 102000 A2√s; (3)VF(TO)1 Low level value of threshold voltage: 0.81 V; (4)VF(TO)2 High level value of threshold voltage: 0.99 to 1.04V; (5)rf1 Low level value of forward slope resistance: 4.59 to 3.52mΩ; (6)rf2 High level value of forward slope resistance: 4.17 to 3.13; (7)VFM Maximum forward voltage drop: 1.63 to 1.49 V; (8)VINS RMS isolation voltage: 4000 to 4000 V.

Features

160MT160KB features: (1)Package fully compatible with the industry standard INT-Apak power modules series; (2)High thermal conductivity package, electrically insulated case; (3)Outstanding number of power encapsulated components; (4)Excellent power volume ratio, outline for easy connections to power transistor and IGBT modules; (5)4000 VRMS isolating voltage; (6)UL E78996 approved.

Diagrams

<IMG border=0 alt="160MT160KB diagram" src="http://www.seekic.com/uploadfile/ic-mfg/201283024554738.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
160MT160KB
160MT160KB

RECT BRIDGE 1600V 160A INT-A-PAK
Data Sheet
Negotiable
