Product Summary

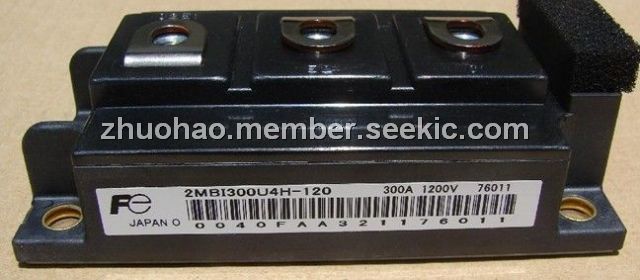

The 2MBI300U4H-120 is an IGBT module.
Parametrics
2MBI300U4H-120 absolute maximum ratings: (1)Collector-Emitter voltage, VCES: 1200V; (2)Gate-Emitter voltage, VGES: ±20V; (3)Collector Power Dissipation, Pc: 1470W; (4)Junction temperature, Tj: +150℃; (5)Storage temperature, Tstg: -40 to +125℃; (6)Collector current, Ic, Tc=25℃: 400A.
Features
2MBI300U4H-120 features: (1)Zero gate voltage collector current, ICES, VCE=1200V, VGE=0V: 4.0mA; (2)Gate-Emitter leakage current, ICES, VCE=0V, VGE=±20V: 800nA; (3)Gate-Emitter threshold voltage, VGE(th): 4.5 to 8.5V.
