Product Summary
The 74HC154N is a 4-to-16 line decoder/demultiplexer. It is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL(LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HC154N accepts four active HIGH binary address inputs and provide 16 mutually exclusive active LOW outputs. The 2-input enable gate of the 74HC154N can be used to strobe the decoder to eliminate the normal decoding “glitches” on the outputs, or it can be used for the expansion of the decoder.
Parametrics
74HC154N absolute maximum ratings: (1)supply voltage:-0.5V to +7.0V; (2)input diode current:±20mA; (3)output diode current:±20mA; (4)output source or sink current:±25mA; (5)VCC or GND current:±50mA; (6)storage temperature:-65 to +150℃; (7)power dissipation:300mW.
Features
74HC154N features: (1)16-line demultiplexing capability; (2)Decodes 4 binary-coded inputs into one of 16 mutually exclusive outputs; (3)Complies with JEDEC standard no. 8-1 B; (4)ESD protection: HBM EIA/JESD22-A114-B exceeds 2000 V, MM EIA/JESD22-A115-A exceeds 200 V; (5)Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃.

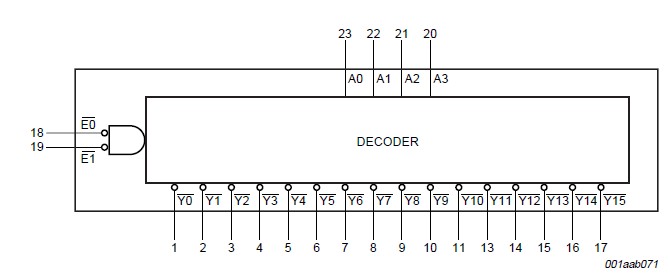

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC154N,652 |
NXP Semiconductors |
Encoders, Decoders, Multiplexers & Demultiplexers 4-16 LINE DCOD/DMUX |
Data Sheet |
|
|
||||||||||||
