Product Summary

The CC1010 is a Single Chip Very Low Power RF Transceiver with 8051-Compatible Microcontroller. It can be programmed for operation in the 300 – 1000 MHz range, and is designed for very low power wireless applications. The applications of the CC1010 include: (1)Very low power UHF wireless data transmitters and receivers; (2)315 / 433 / 868 and 915 MHz ISM/SRD band systems; (3)Home automation and security; (4)AMR-Automatic Meter Reading; (5)RKE-Remote Keyless Entry with acknowledgement; (6)Low power telemetry; (7)Toys.

Parametrics

CC1010 absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to 5.0 V; (2)Voltage on any pin: -0.3 to VDD+0.3, max 5.0 V; (3)Input RF level: 10 dBm; (4)Storage temperature range: -50 to 150 ℃; (5)Storage temperature range: -40 to 125 ℃; (6)Lead temperature: 260 ℃.

Features

CC1010 features: (1)300-1000 MHz RF Transceiver; (2)8051-Compatible Microcontroller; (3)2.7 - 3.6 V supply voltage; (4)64-lead TQFP.

Diagrams

<IMG border=0 alt="CC1010 block diagram" src="http://www.seekic.com/uploadfile/ic-mfg/201283121445400.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

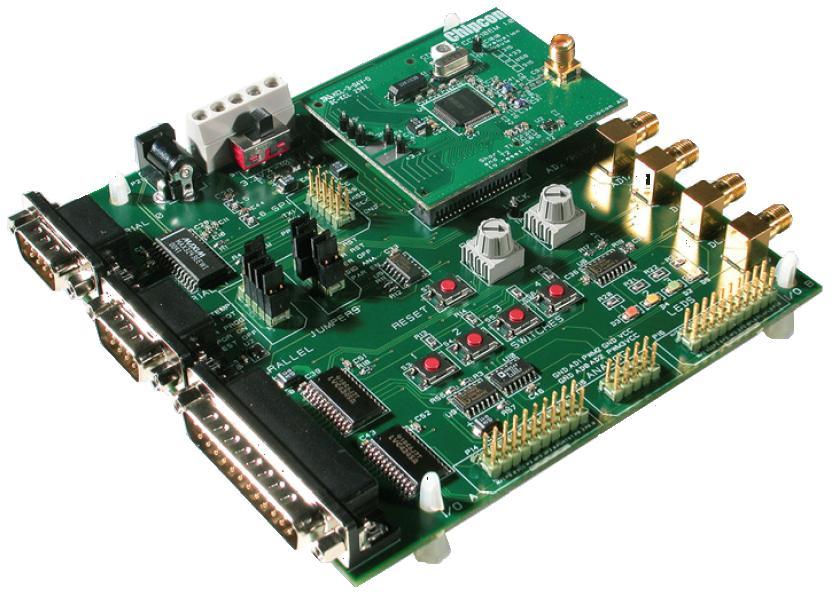

CC1010DK-433
CC1010DK-433

Texas Instruments

RF Development Tools CC1010 433MHz DEVELOPMENT KIT

Data Sheet

Negotiable
CC1010DK-868-915
CC1010DK-868-915

Texas Instruments

RF Development Tools CC1010 868/915MHz DEVELOPMENT KIT

Data Sheet

0-1: $345.91
CC1010EMK-868-915
CC1010EMK-868-915

Texas Instruments

RF Development Tools 1010 EVALUATION KIT 2-CC1010EM & ANTENNA

Data Sheet

0-1: $153.73

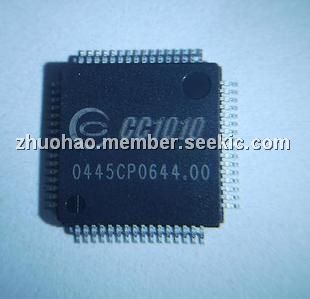

CC1010PAG
CC1010PAG

Texas Instruments

RF Receiver 300-1000MHz LW PWR TRANSCEIVER

Data Sheet

0-95: $9.85
95-100: $9.14
100-250: $8.39
250-500: $7.99
CC1010PAGG3
CC1010PAGG3

Texas Instruments

RF Transceiver Int 300-1000MHz RF Xceiver & Micrcntrlr

Data Sheet

0-95: $9.85
95-100: $9.14
100-250: $8.39
250-500: $7.99
CC1010PAGRG3
CC1010PAGRG3

Texas Instruments

RF Transceiver Int 300-1000MHz RF Xceiver & Micrcntrlr

Data Sheet

0-1154: $6.26
1154-1500: $6.26
CC1010-RTR1
CC1010-RTR1

Texas Instruments

RF Transceiver TRANSCEIVER CHIP w/ MCU TAPE AND REEL

Data Sheet

0-1154: $6.26
1154-1500: $6.26
CC1010-RTY1
CC1010-RTY1

Texas Instruments

RF Receiver Integ 300-1000MHz RF Xceiver & Micrcntrlr

Data Sheet

0-95: $9.85
95-100: $9.14
100-250: $8.39
250-500: $7.99
