Product Summary

The CC2550RSTR is a Low-Cost Low-Power 2.4 GHz RF Transmitter designed for very low-power wireless applications. The circuit is intended for the 2400-2483.5 MHz ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency band. The CC2550RSTR is integrated with a highly configurable baseband modulator. The modulator supports various modulation formats and has a configurable data rate up to 500 kBaud. The applications of the CC2550RSTR include: (1)2400-2483.5 MHz ISM/SRD band systems; (2)Consumer electronics; (3)Wireless game controllers; (4)Wireless audio; (5)RF enabled remote controls.

Parametrics

CC2550RSTR absolute maximum ratings: (1)Supply voltage: –0.3 to 3.9 V; (2)Voltage on any digital pin: –0.3 to VDD+0.3, max 3.9 V; (3)Voltage on the pins RF_P, RF_N and DCOUPL: –0.3 to 2.0 V; (4)Storage temperature range: –50 to 150 ℃; (5)Solder reflow temperature: 260 ℃; (6)ESD: <500 V.

Features

CC2550RSTR features: (1)Few external components: Complete onchip frequency synthesizer, no external filters needed; (2)Green package: RoHS compliant and no antimony or bromine; (3)Small size (QLP 4x4 mm package, 16 pins); (4)Suited for systems compliant with EN 300 328 and EN 300 440 class 2 (Europe), FCC CFR47 Part 15 (US), and ARIB STDT66(Japan); (5)Support for asynchronous and synchronous serial transmit mode for backwards compatibility with existing radio communication protocols.

Diagrams

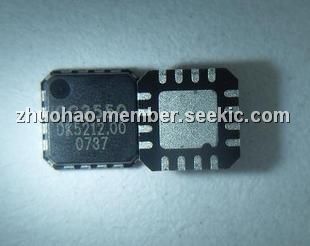

CC2550RSTR diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CC2550RSTR
CC2550RSTR

Texas Instruments

RF Transmitter CC2550 TAPE AND REEL

Data Sheet

0-1790: $0.83
1790-2000: $0.79
2000-2500: $0.79
2500-5000: $0.74
