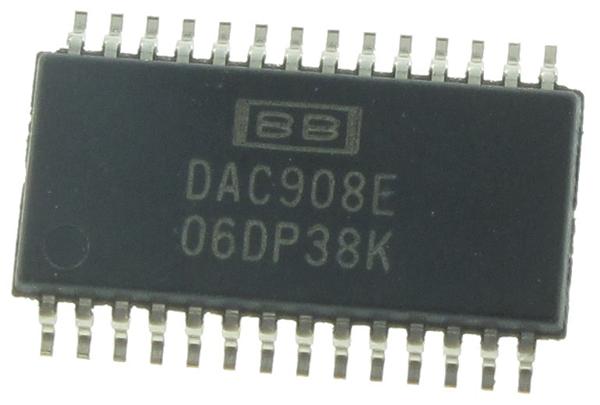

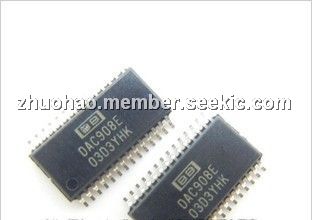

DAC908E

Digital-to-Analog Converter, 8-bit, 28-Pin TSSOP, +5V, 170mW, 5.04MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: DAC908E

Brand:: Burr-Brown Corporation - BB | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rumi Guo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-28

From Other Seller

Part Number:DAC908E
US $1.00 - 2.00
BD9774HFP

US $0.70 - 1.20 / Piece
(0) Remove
LA76810A

US $0.90 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

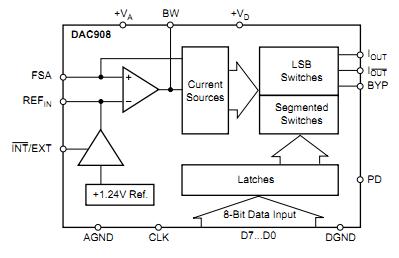

The DAC908E is a high-speed, Digital-to-Analog Converter (DAC) offering an 8-bit resolution option within the SpeedPlus family of high-performance converters. Featuring pin compatibility among family members, the DAC908E provides a component selection option to an 10-, 12-, and 14-bit resolution, respectively. All models within this family of DACs support update rates in excess of 165MSPS with excellent dynamic performance, and are especially suited to fulfill the demands of a variety of applications. The applications of the DAC908E include medical instrumentation ultrasound (dbf), video, digital tv, waveform generation direct digital synthesis (dds) arbitrary waveform generation (arb), test instrumentation and communications.

Parametrics

DAC908E absolute maximum ratings: (1)+VA to AGND: –0.3V to +6V; (2)+VD to DGND: –0.3V to +6V; (3)AGND to DGND:–0.3V to +0.3V; (4)+VA to +VD: –6V to +6V; (5)CLK, PD to DGND: –0.3V to VD + 0.3V; (6)D0-D7 to DGND: –0.3V to VD + 0.3V; (7)IOUT, IOUT to AGND: –1V to VA + 0.3V; (8)BW, BYP to AGND:–0.3V to VA + 0.3V; (9)REFIN, FSA to AGND: –0.3V to VA + 0.3V; (10)INT/EXT to AGND:–0.3V to VA + 0.3V; (11)Junction Temperature: +150℃; (12)Case Temperature: +100℃; (13)Storage Temperature: +125℃.

Features

DAC908E features: (1)single +5V or +3V operation; (2)high SFDR: 5.04MHz Output at 100MSPS: 67dBc; (3)low glitch: 3pV-s; (4)low power: 170mW at +5V; (5)internal reference: Optional Ext. Reference; Adjustable Full-Scale Range; Multiplying Option.
