Product Summary

The G4A-1A-PE-12V is a miniature single-pole relay with 80-A surge current and 20-A switching current.

Parametrics

G4A-1A-PE-12V contact ratings: (1)Rated load: 20 A at 250 VAC; (2)Rated carry current :20 A; (3)Max. switching voltage: 250 VAC; (4)Max. switching current: 20 A; (5)Max. switching power: 5,000 VA; (6)Failure rate (reference value): 100 mA at 5 VDC.

Features

G4A-1A-PE-12V features: (1)Ideal for motor switching; (2)Miniature, relay with high switching power and long endurance; (3)Creepage distance conforms to UL and CSA standards; (4)Highly noise-resistive insulation materials employed; (5)Standard model available with flux protection construction.

Diagrams

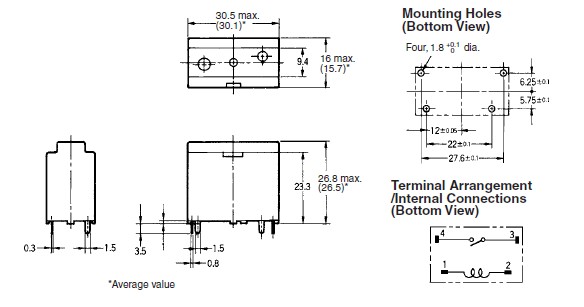

G4A-1A-PE-12V dimension

G4A-1A-E DC12 BY OMZ
G4A-1A-E DC12 BY OMZ


RELAY GEN PURPOSE SPST 20A 12V

Data Sheet

0-1: $4.13
1-25: $3.72
25-50: $3.31
50-100: $2.98
100-250: $2.81
250-500: $2.48
500-1000: $2.23
G4A-1A-E DC24 BY OMZ
G4A-1A-E DC24 BY OMZ


RELAY GEN PURPOSE SPST 20A 24V

Data Sheet

0-1: $4.13
1-25: $3.72
25-50: $3.31
50-100: $2.98
100-250: $2.81
250-500: $2.48
500-1000: $2.23
G4A-1A-E DC5
G4A-1A-E DC5


RELAY GEN PURPOSE SPST 20A 5V

Data Sheet

0-1: $4.36
1-25: $3.92
25-50: $3.48
50-100: $3.13
100-250: $2.96
250-500: $2.61
500-1000: $2.35
G4A-1A-E-DC24
G4A-1A-E-DC24

Omron Electronics

General Purpose / Industrial Relays SPST-NO 24VDC PCB & QC

Data Sheet

0-1: $4.38
1-25: $4.01
25-50: $3.68
50-100: $3.47
G4A-1A-PE DC12
G4A-1A-PE DC12


RELAY GEN PURPOSE SPST 20A 12V

Data Sheet

0-1: $4.64
1-25: $4.18
25-50: $3.71
50-100: $3.34
100-250: $3.16
250-500: $2.79
500-1000: $2.51
G4A-1A-PE DC24
G4A-1A-PE DC24


RELAY GEN PURPOSE SPST 20A 24V

Data Sheet

0-1: $4.64
1-25: $4.18
25-50: $3.71
50-100: $3.34
100-250: $3.16
250-500: $2.79
500-1000: $2.51
