Product Summary

The CC2530F256RHAR is a true system-on-chip (SoC) solution for IEEE 802.15.4, Zigbee and RF4CE applications. It enables robust network nodes to be built with very low total bill-of-material costs. The CC2530F256RHAR combines the excellent performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8-KB RAM, and many other powerful features. The CC2530F256RHAR has various operating modes, making it highly suited for systems where ultralow power consumption is required. Short transition times between operating modes further ensure low energy consumption. The applicaitons of the CC2530F256RHAT include 2.4-GHz IEEE 802.15.4 Systems, RF4CE Remote Control Systems (64-KB Flash and Higher), ZigBee Systems (256-KB Flash), Home/Building Automation, Lighting Systems, Industrial Control and Monitoring, Low-Power Wireless Sensor Networks, Consumer Electronics and Health Care.

Parametrics

CC2530F256RHAR absolute maximum ratings: (1)Supply voltage All supply pins must have the same voltage: –0.3 to 3.9V ; (2)Voltage on any digital pin:–0.3 to VDD + 0.3V; (3)Input RF level: 10 dBm; (4)Storage temperature range: – 40 to 125℃; (5)ESD, All pads, according to human-body model, JEDEC STD 22, method A114: 2 kV; According to charged-device model, JEDEC STD 22, method C101: 500 V.

Features

CC2530F256RHAR features: (1)2.4-GHz IEEE 802.15.4 Compliant RF Transceiver; (2)Excellent Receiver Sensitivity and Robustness to Interference; (3)Programmable Output Power Up to 4.5 dBm; (4)Very Few External Components; (5)Only a Single Crystal Needed for Mesh Network Systems; (6)6-mm × 6-mm QFN40 Package; (7)Suitable for Systems Targeting Compliance With Worldwide Radio-Frequency; (8)High-Performance and Low-Power 8051 Microcontroller Core With Code Prefetch; (9)32-, 64-, 128-, or 256-KB In-System-Programmable Flash; (10)8-KB RAM With Retention in All Power Modes; (11)Hardware Debug Support.

Diagrams

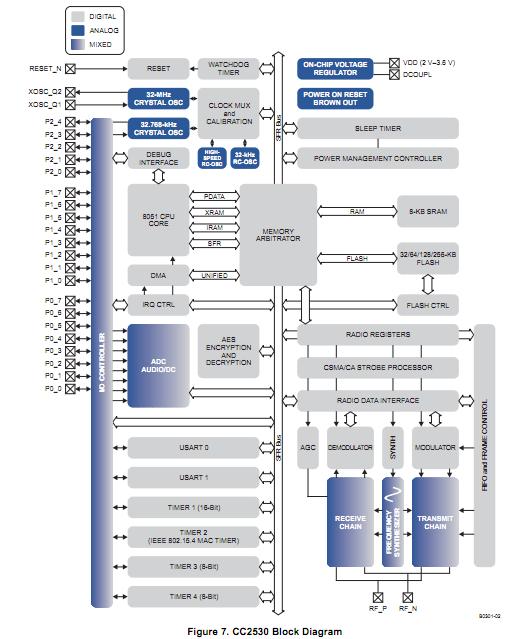

CC2530F256RHAR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CC2530F256RHAR
CC2530F256RHAR

Texas Instruments

RF Microcontrollers (MCU) 2nd Gen SOC Solution

Data Sheet

0-1880: $2.56
1880-2000: $2.46
2000-2500: $2.46
