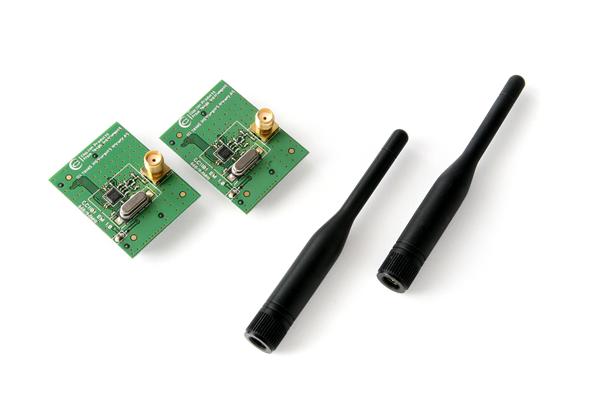

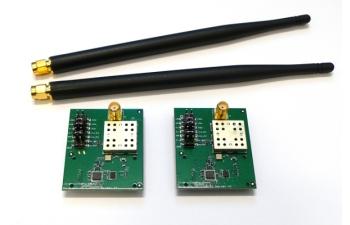

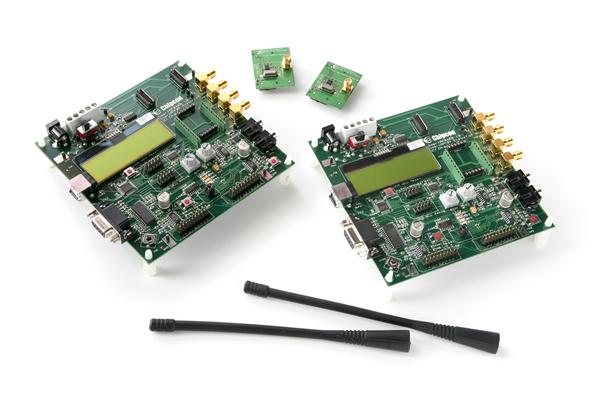

Product Summary

The CC1101 is a low-cost sub- 1 GHz transceiver designed for very low-power wireless applications. The CC1101 is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 315, 433, 868, and 915 MHz, but can easily be programmed for operation at other frequencies in the 300-348 MHz, 387-464 MHz and 779-928 MHz bands. The applications of the CC1101 include: (1)Ultra low-power wireless applications operating in the 315/433/868/915 MHz ISM/SRD bands; (2)Wireless alarm and security systems; (3)Industrial monitoring and control; (4)Wireless sensor networks; (5)AMR-Automatic Meter Reading; (6)Home and building automation.

Parametrics

CC1101 absolute maximum ratings: (1)Supply voltage: -0.3 to 3.9 V; (2)Voltage on any digital pin: –0.3 to VDD + 0.3 max 3.9V; (3)Voltage on the pins RF_P, RF_N, and DCOUPL: –0.3 to 2.0 V; (4)Voltage ramp-up rate: 120 kV/μs; (5)Input RF level: +10 dBm; (6)Storage temperature range: -50 to 150 ℃; (7)Solder reflow temperature: 260 ℃ According to IPC/JEDEC J-STD-020C; (8)ESD: 750 V According to JEDEC STD 22, method A114, Human Body Model (HBM); (9)ESD: 400 V According to JEDEC STD 22, C101C, Charged Device Model (CDM).

Features

CC1101 features: (1)High sensitivity (11 dBm at 1.2 kBaud, 868 MHz, 1% packet error rate); (2)Low current consumption (14.7 mA in RX, 1.2 kBaud, 868 MHz); (3)Programmable output power up to +10 dBm for all supported frequencies; (4)Excellent receiver selectivity and blocking performance; (5)Programmable data rate from 1.2 to 500 kBaud; (6)Frequency bands: 300-348 MHz, 387-464 MHz and 779-928 MHz.

Diagrams

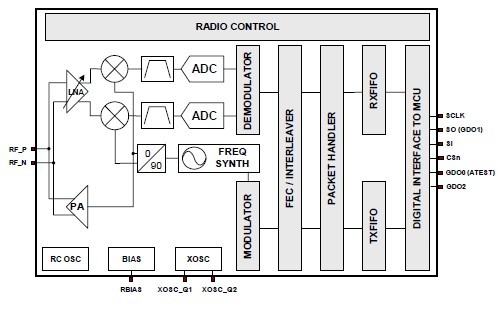

CC1101 diagram
