CM600HA-24H

Mitsubishi igbt modules, 600 Amperes, 1200 Volts, 4100 Watts

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: CM600HA-24H

Brand:: Mitsubishi Electric Semiconductor - MES | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rumi Guo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-09

From Other Seller

Part Number:CM600HA-24H
US $1.00 - 2.00
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

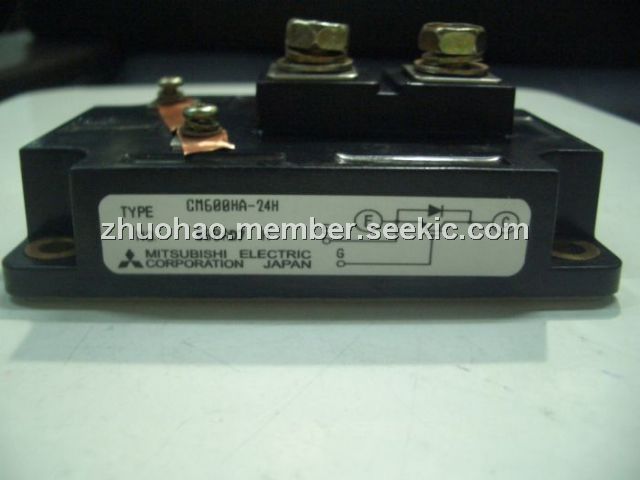

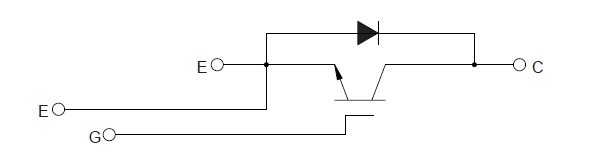

The Mitsubishi IGBT Module CM600HA-24H is designed for use in switching applications. Each module consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects of CM600HA-24H are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.

Parametrics

CM600HA-24H absolute maximum ratings: (1)Junction Temperature Tj: -40 to 150 ℃; (2)Storage Temperature Tstg: -40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT) VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT) VGES: ±20 Volts; (5)Collector Current (Tc = 25℃) IC: 600 Amperes; (6)Peak Collector Current (Tj ≤ 150℃) ICM: 1200* Amperes; (7)Emitter Current** (Tc = 25℃) IE: 600 Amperes; (8)Peak Emitter Current** IEM: 1200* Amperes; (9)Maximum Collector Dissipation (Tc = 25℃) Pc: 4100 Watts; (10)Mounting Torque, M8 Main Terminal: 8.83 to 10.8 N · m; (11)Mounting Torque, M6 Mounting: 1.96 to 2.94 N · m; (12)Weight: 560 Grams; (13)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Vrms.

Features

CM600HA-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
