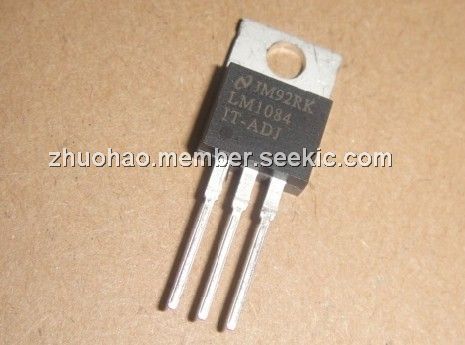

Product Summary

The LM1084IT-ADJ is a low dropout voltage positive regulator with a maximum dropout of 1.5V at 5A of load current. It has the same pin-out as National Semiconductor’s industry standard LM317. The LM1084IT-ADJ is available in an adjustable version, which can set the output voltage with only two external resistors. The LM1084IT-ADJ is also available in three fixed voltages: 3.3V, 5.0V and 12.0V. The fixed versions intergrate the adjust resistors. The applications of the LM1084IT-ADJ include Post Regulator for Switching DC/DC Conveter, High Efficiency Linear Regulators and Battery Charger.

Parametrics

LM1084IT-ADJ absolute maximum ratings: (1)Maximum Input to Output Voltage Differential: 29V; (2)Power Dissipation: Internally Limited; (3)Junction Temperature (TJ): 150℃; (4)Storage Temperature Range: -65 to 150℃; (5)Lead Temperature: 260℃, to 10 sec; (6)ESD Tolerance: 2000V.

Features

LM1084IT-ADJ features: (1)Available in 3.3V, 5.0V, 12V and Adjustable Versions; (2)Current Limiting and Thermal Protection; (3)Output Current: 5A; (4)Industrial Temperature Range: -40 to 125℃; (5)Line Regulation: 0.015% (typical); (6)Load Regulation: 0.1% (typical).

Diagrams

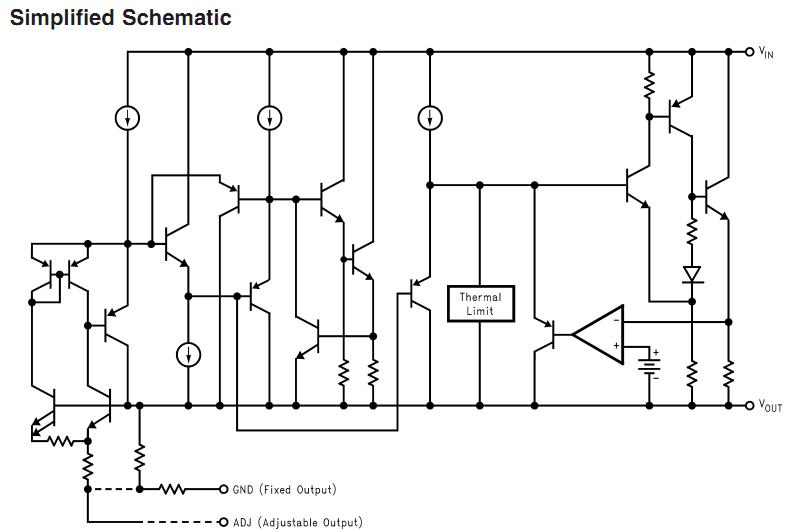

LM1084IT-ADJ diagram
