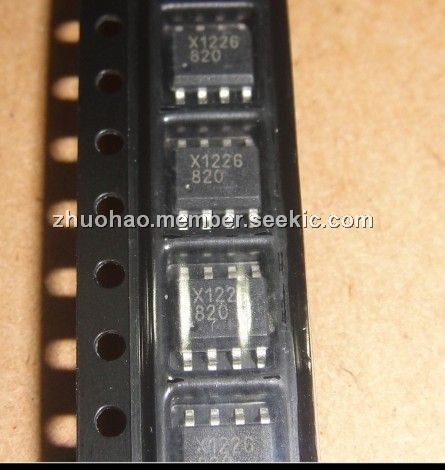

X1226

real time clock/calendar, SOP, 5 mA, ±30ppm, 7.0V, X1226, Elantec Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: X1226

Brand:: Elantec Semiconductor - Intersil | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rumi Guo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-09

From Other Seller

Part Number:X1226
US $1.00 - 2.00
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

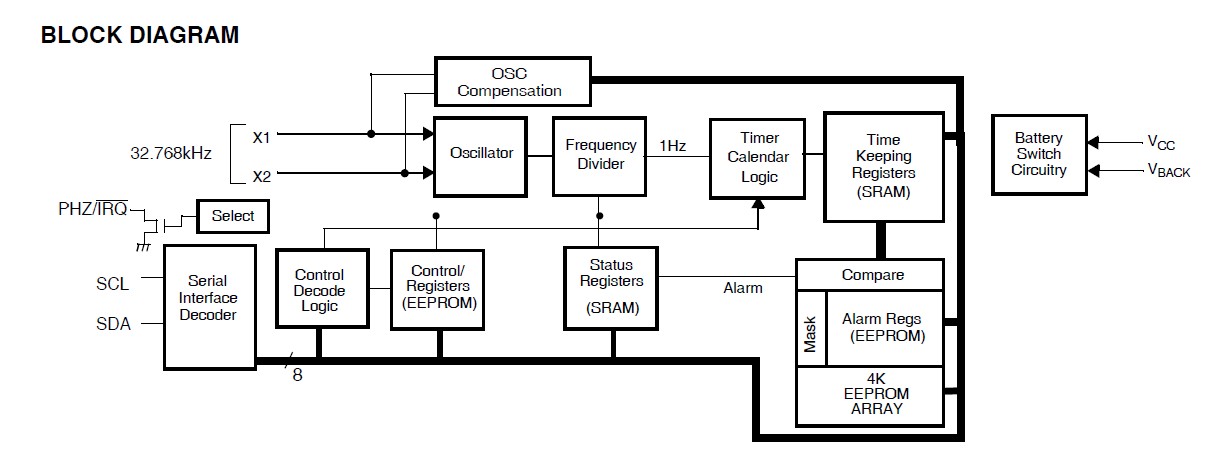

The X1226 is a real time clock/calendar with EEPROM. The X1226 is a Real Time Clock with clock/calendar, two polled alarms with integrated 512x8 EEPROM, oscillator compensation, and battery backup switch. The oscillator X1226 uses an external, low-cost 32.768kHz crystal. All compensation and trim components are integrated on the chip. This eliminates several external discrete components and a trim capacitor, saving board area and component cost.

Parametrics

X1226 absolute maximum ratings: (1)Temperature Under Bias: -65℃ to +135℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on VCC, VBACK and PHZ/IRQ; (4)pin (respect to ground): -0.5V to 7.0V; (5)Voltage on SCL, SDA, X1 and X2 pin (respect to ground): -0.5V to 7.0V or 0.5V; (6)above VCC or VBACK (whichever is higher); (7)DC Output Current: 5 mA; (8)Lead Temperature (Soldering, 10s): 300℃.

Features

X1226 features: (1)Real Time Clock/Calendar; (2)Tracks Time in Hours, Minutes, and Seconds; (3)Day of the Week, Day, Month, and Year; (4)2 Polled Alarms (Non-volatile); (5)Settable on the Second, Minute, Hour, Day of the Week, Day, or Month; (6)Repeat Mode (periodic interrupts); (7)Oscillator Compensation On Chip; (8)Internal Feedback Resistor and Compensation Capacitors; (9)64 Position Digitally Controlled Trim Capacitor; (10)6 Digital Frequency Adjustment Settings to ±30ppm; (11)Battery Switch or Super.
