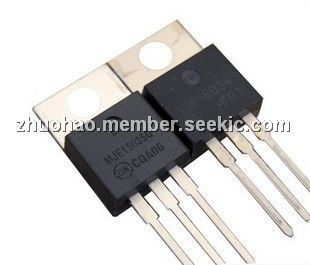

Product Summary

The MJE15035G is a Complementary Silicon Plastic Power Transistor designed for use as high frequency drivers in audio amplifiers.

Parametrics

MJE15035G absolute maximum ratings: (1)Collector-Emitter Voltage, VCEO: 250 Vdc; (2)Collector-Base Voltage, VCB: 250 Vdc; (3)Emitter-Base Voltage, VEB: 5.0 Vdc; (4)Collector Current - Continuous, IC: 8.0Adc; Peak: 16Adc; (5)Base Current, IB: 2.0 Adc; (6)Total Power Dissipation, PD: 50W at Tc=25℃; 0.40W/℃; (7)Total Power Dissipation, PD: 2.0W at TA = 25℃; 0.016W/℃ at Derate above 25℃; (8)Operating and Storage Junction Temperature Range, TJ, Tstg: –65 to +150℃.

Features

MJE15035G features: (1)DC Current Gain Specified to 5.0 Amperes hFE = 70 (Min) @ IC = 0.5 Adc= 10 (Min) @ IC = 2.0 Adc; (2)Collector-Emitter Sustaining Voltage -VCEO(sus) = 250 Vdc (Min); (3)High Current Gain-Bandwidth Product fT = 30 MHz (Min) @ IC = 500 mAdc; (4)TO-220AB Compact Package; (5)Epoxy Meets UL 94 V-0 @ 0.125 in; (6)ESD Ratings: Machine Model C Human Body Model 3B; (7)Pb-Free Packages are Available.

Diagrams

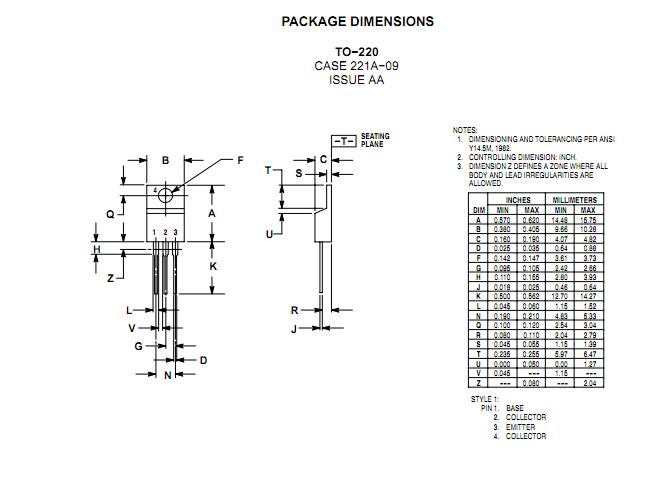

MJE15035G package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MJE15035G
MJE15035G
ON Semiconductor
Transistors Bipolar (BJT) 4A 350V 50W PNP
Data Sheet
0-1: $0.86
1-25: $0.68
25-100: $0.60
100-500: $0.47
