Product Summary

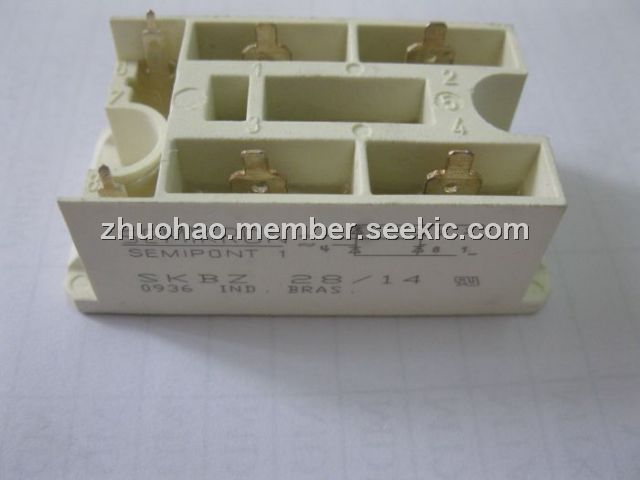

The SKBZ28-14 is a controllable bridge rectifier. The applications of the SKBZ28-14 are: Controllable single phase rectifier; DC power supplies; DC motor controllers; DC motor field controllers.

Parametrics

SKBZ28-14 maximum ratings: (1)ID when Tc=85℃: 30A; (2)ITSM, IFSM, Tvj=25℃; 10MS: 320A; (3)i2t, Tvj=25℃; 8.3 to 10ms: 510A2s; (4)VT, Tvj=25℃; IT=75A: 2, 25V; (5)VT(TO) Tvj=125℃; (6)rT, Tvj=125℃ : 16mΩ; (7)tq, Tvj=125℃: 80μs; (8)IH, Tvj=25℃: 50/150mA; (9)Visol: 3600V.

Features

SKBZ28-14 features: (1)Sturdy isolated metal baseplate; (2)fast-on terminals with solder tips; (3)Suitable for wave soldering; (4)High surge current rating; (5)UL recognized, file no. E 63 532.

Diagrams

<IMG border=0 alt="SKBZ28-14 block daigram" src="http://www.seekic.com/uploadfile/ic-mfg/20128303440388.jpg">
