Product Summary

The SN74LS74AN is a dual D-type positive-edge-triggered flip-flop with preset and clear. The device contains two independent D-type positive-dege-triggered flip-flops. A low levle at the preset or clear inputs sets or resets the outputs regardless of the levels of the other inputs. The SN74LS74AN is characterized for operation from 0 to 70℃.

Parametrics

SN74LS74AN absolute maximum ratings: (1)supply voltage, VCC: 7V; (2)input volage: 5.5V; (3)operating free-air temperature range: 0 to 70℃; (4)storage temperature range: -65 to 150℃.

Features

SN74LS74AN features: (1)package options include plastic small outline packages, ceramic chip carriers and flat packages, and platic and ceramic DIPs; (2)dependable texas instruments quality and reliablility.

Diagrams

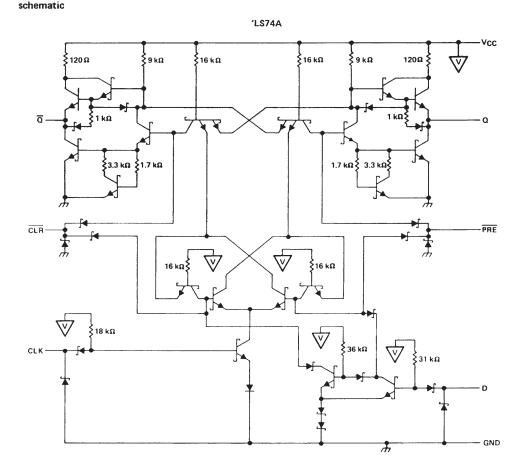

SN74LS74AN diagram
