Product Summary

The AT45DB011B-SU is a 2.7-volt only, serial interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. Its 1,081,344 bits of memory are organized as 512 pages of 264 bytes each. In addition to the main memory, the AT45DB011B-SU also contains one SRAM data buffer of 264 bytes. The buffer allows receiving of data while a page in the main memory is being reprogrammed.

Parametrics

AT45DB011B-SU absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)All Input Voltages(including NC Pins) with Respect to Ground: -0.6V to +6.25V; (3)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (4)Temperature under Bias: -55℃ to +125℃.

Features

AT45DB011B-SU features: (1)Fast Page Program Time 7 ms Typical; (2)120 μs Typical Page to Buffer Transfer Time; (3)Low Power Dissipation; (4)Hardware Data Protection Feature; (5)100% Compatible with AT45DB011; (6)Commercial and Industrial Temperature Ranges; (7)Green (Pb/Halide-free/RoHS Compliant) Packaging Options.

Diagrams

AT45DB011B-SU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

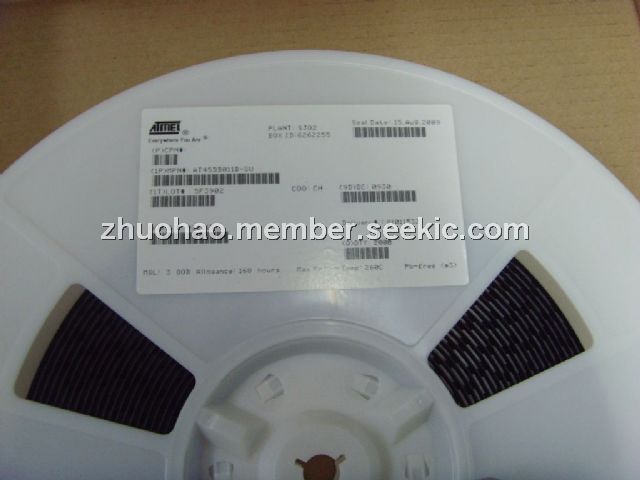

AT45DB011B-SU
AT45DB011B-SU

Atmel

Flash 1M 8 I/O SPI 264B 2.7V

Data Sheet

Negotiable
