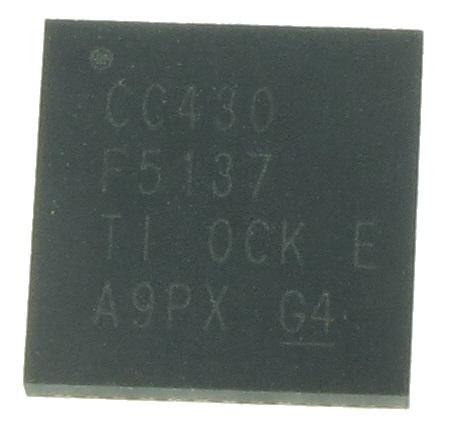

CC430F5137

ultralow-power microcontroller system-on-chip, QFN, 1.8 V to 3.6 V, CC430F5137

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: CC430F5137

Brand:: Texas Instruments - TI | Pack: QFN | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rumi Guo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-28

From Other Seller

Part Number:CC430F5137
US $1.00 - 2.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

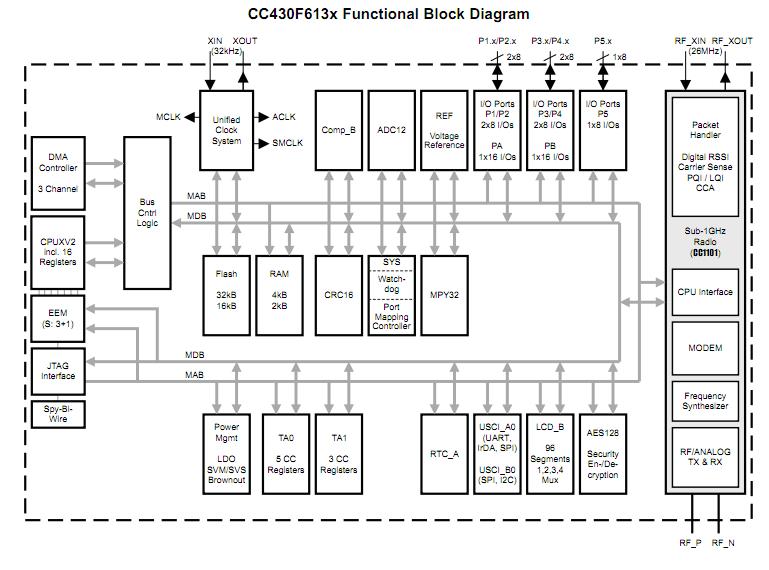

The CC430F5137 is an ultralow-power microcontroller system-on-chip with integrated RF transceiver cores consists of several devices featuring different sets of peripherals targeted for a wide range of applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The CC430F5137 features the powerful MSP430 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. Typical applications for the CC430F5137 include wireless analog and digital sensor systems, heat cost allocators, thermostats, metering (AMR/AMI), smart grid wireless networks etc.

Parametrics

CC430F5137 absolute maximum ratings: (1)Voltage applied at DVCC and AVCC pins to VSS: –0.3 V to 4.1 V; (2)–0.3 V to (VCC + 0.3 V),; (3)Voltage applied to any pin (excluding VCORE, RF_P, RF_N, and R_BIAS): 4.1 V Max; (4)Voltage applied to VCORE, RF_P, RF_N, and R_BIAS: –0.3 V to 2.0 V; (5)Input RF level at pins RF_P and RF_N: 10 dBm; (6)Diode current at any device terminal: ±2 mA; (7)Storage temperature range, Tstg: –55 to 105℃; (8)Maximum junction temperature, TJ: 95℃.

Features

CC430F5137 features: (1)True System-on-Chip (SoC) for Low-Power Wireless Communication Applications; (2)Wide Supply Voltage Range: 1.8 V to 3.6 V; (3)Ultralow Power Consumption; (4)MSP430 System and Peripherals High-Performance Sub-1-GHz RF Transceiver Core.
