Product Summary

The LMV358 is a single, dual, and quad low-voltage (2.7 V to 5.5 V), operational amplifier with rail-to-rail output swing. It is the most cost-effective solution for applications where low-voltage operation, space saving, and low cost are needed. The LMV358 is a common-mode input voltage range that includes ground, 1-MHz unity-gain bandwidth, and 1-V/μs slew rate.

Parametrics

LMV358 absolute maximum ratings: (1)Supply voltage, VCC: 5.5 V; (2)Differential input voltage, VID: ±5.5 V; (3)Input voltage, VI (either input): 0 to 5.5 V; (4)Package thermal impedance, θJA: D (8-pin) package: 97℃/W; (5)Operating virtual junction temperature, TJ: 150℃; (6)Storage temperature range, Tstg: -65℃ to 150℃.

Features

LMV358 features: (1)2.7-V and 5-V Performance; (2)-40℃ to 125℃ Operation; (3)No Crossover Distortion; (4)Low Supply Current: 210 μA Typ; (5)Rail-to-Rail Output Swing; (6)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A); 1000-V Charged-Device Model (C101).

Diagrams

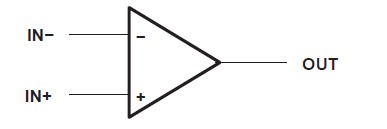

LMV358 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LMV358AM8X
LMV358AM8X

Fairchild Semiconductor

Operational Amplifiers - Op Amps Low Cost RRO amp General Purpose Dual

Data Sheet

0-1: $0.35
1-25: $0.28
25-100: $0.20
100-250: $0.18
LMV358AMU8X
LMV358AMU8X

Fairchild Semiconductor

Operational Amplifiers - Op Amps Low Cost RRO amp General Purpose Dual

Data Sheet

0-1: $0.40
1-25: $0.32
25-100: $0.23
100-250: $0.20
LMV358AMU8X_Q
LMV358AMU8X_Q

Fairchild Semiconductor

Operational Amplifiers - Op Amps Low Cost RRO amp General Purpose Dual

Data Sheet

Negotiable
LMV358IDDURG4
LMV358IDDURG4

Texas Instruments

Operational Amplifiers - Op Amps Dual Low Vltg Rail- to-Rail Output

Data Sheet

0-2000: $0.18
2000-3000: $0.16
3000-6000: $0.15
6000-12000: $0.15
LMV358IDGKR
LMV358IDGKR

Texas Instruments

Operational Amplifiers - Op Amps Dual Lw V R/R Op Amp

Data Sheet

0-1: $0.45
1-25: $0.35
25-100: $0.31
100-250: $0.27
LMV358IDRG4
LMV358IDRG4

Texas Instruments

Operational Amplifiers - Op Amps Dual Low-Voltage Rail-to-Rail Out

Data Sheet

0-1: $0.53
1-25: $0.41
25-100: $0.36
100-250: $0.31
LMV358IPWR
LMV358IPWR

Texas Instruments

Operational Amplifiers - Op Amps Dual Lw V R/R Op Amp

Data Sheet

0-1: $0.38
1-25: $0.27
25-100: $0.23
100-250: $0.20
LMV358MM/NOPB
LMV358MM/NOPB

National Semiconductor (TI)

Operational Amplifiers - Op Amps GENERAL PURPOSE, LOW VLTG, RRO OP AMP

Data Sheet

0-1: $0.55
1-25: $0.43
25-100: $0.38
100-250: $0.33
