Product Summary
The MC54HC04AJ is a High-Performance Silicon-Gate CMOS. The device is identical in pinout to the LS04 and the MC14069. The MC54HC04AJ inputs are compatible with Standard CMOS out-puts; with pullup resistors, they are compatible with LSTTL outputs. The MC54HC04AJ consists of six three–stage inverters.
Parametrics
MC54HC04AJ absolute maximum ratings: (1)VCC, DC Supply Voltage (Referenced to GND): – 0.5 to + 7.0 V; (2)Vin, DC Input Voltage (Referenced to GND): –0.5 to VCC + 0.5 V; (3)Vout, DC Output Voltage (Referenced to GND): –0.5 to VCC + 0.5V; (4)Iin, DC Input Current, per Pin: ±20 mA; (5)Iout, DC Output Current, per Pin: ±25 mA; (6)ICC, DC Supply Current, VCC and GND Pins: ±50 mA; (7)PD, Power Dissipation: 750mW; (8)Tstg, Storage Temperature: –65 to + 150℃; (9)TL, Lead Temperature: 260℃.
Features
MC54HC04AJ features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS and TTL; (3)Operating Voltage Range: 2 to 6V; (4)Low Input Current: 1μA; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance With the JEDEC Standard No. 7A Requirements; (7)Chip Complexity: 36 FETs or 9 Equivalent Gates.

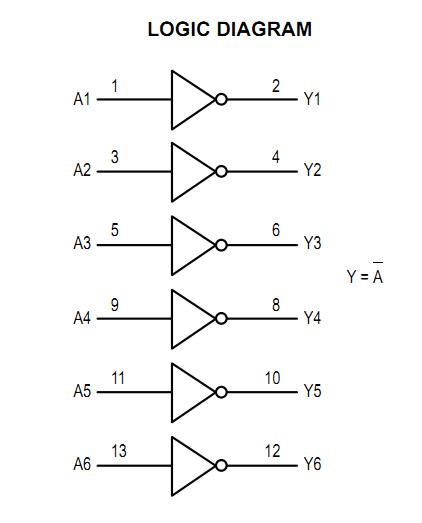

Diagrams
 |
