Product Summary

The W25X16AVSSIG is a 16M-bit serial flash memory with 4KB sectors and dual output SPI. It provides a storage solution for systems with limited space, pins and power. The W25X16AVSSIG offers flexibility and performance well beyond ordinary Serial Flash devices. It is ideal for code download applications as well as storing voice, text and data. The W25X16AVSSIG operates on a single 2.7V to 3.6V power supply with current consumption as low as 5mA active and 1μA for power-down. The device is offered in space-saving packages.

Parametrics

W25X16AVSSIG absolute maximum ratings: (1)Supply Voltage VCC: –0.6 to +4.0 V; (2)Voltage applied to any Pin VIO: –0.6 to VCC +0.4 V; (3)Transient Voltage on any Pin VIOT: –2.0V to VCC+2.0V V; (4)Storage Temperature TSTG: –65 to +150 ℃; (5)Electrostatic Discharge Voltage VESD: –2000 to +2000 V.

Features

W25X16AVSSIG features: (1)Family of Serial Flash Memories; (2)SPI with Single or Dual Outputs; (3)Data Transfer up to 150M-bits / second; (4)Flexible Architecture with 4KB sectors; (5)Low Power Consumption, Wide Temperature Range; (6)Software and Hardware Write Protection; (7)Space Efficient Packaging.

Diagrams

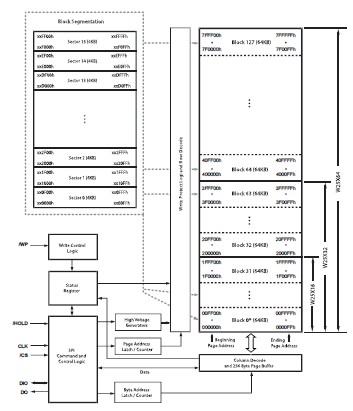

W25X16AVSSIG block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
W25X16AVSSIG
W25X16AVSSIG


IC FLASH 16MBIT 75MHZ 8SOIC

Data Sheet

Negotiable
