Product Summary

The HEF4013BP is a dual D-type flip-flop that features independent set-direct input (SD), clear-direct input (CD), clock input (CP) and outputs (Q, Q). Data is accepted when CP is LOW and is transferred to the output on the positive-going edge of the clock. The HEF4013BP operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input. The HEF4013BP is suitable for use over both the industrial (-40℃ to +85℃) and automotive (-40℃ to +125℃) temperature ranges. It is used in Counters and dividers, Registers, Toggle flip-flops.

Parametrics

HEF4013BP absolute maximum ratings: (1)VDD, supply voltage: -0.5 to +18 V; (2)IIK, input clamping current: ±10 mA when VI < -0.5 V or VI >VDD + 0.5 V; (3)VI, input voltage: -0.5 to VDD + 0.5 V; (4)IOK, output clamping current: 10 mA when VO < -0.5 V or VO >VDD + 0.5 V; (5)II/O, input/output current: ±10 mA; (6)IDD, supply current: 50 mA; (7)Tstg, storage temperature: -65 to +150℃; (8)Tamb, ambient temperature: -40 to +125℃; (9)Ptot, total power dissipation: 500 mW; (10)P, power dissipation per output: 100 mW.

Features

HEF4013BP features: (1)Tolerant of slow clock rise and fall times; (2)Fully static operation; (3)5 V, 10 V, and 15 V parametric ratings; (4)Standardized symmetrical output characteristics; (5)Operates across the automotive temperature range from -40 to +125℃; (6)Complies with JEDEC standard JESD 13-B.

Diagrams

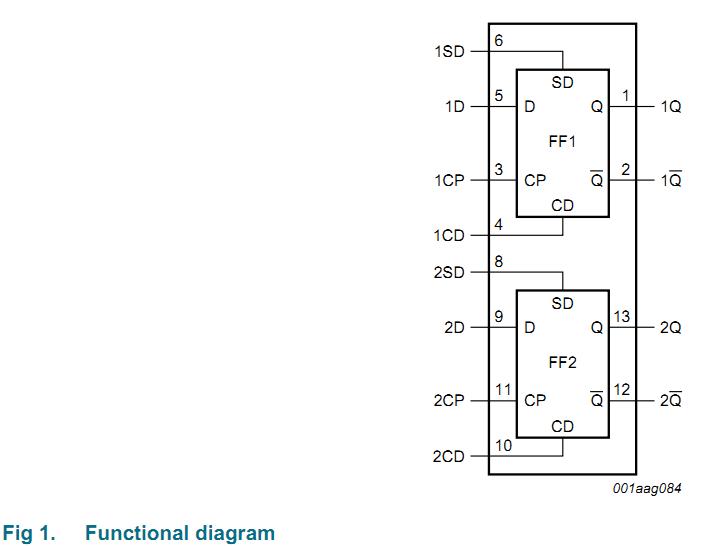

HEF4013BP diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HEF4013BP,652
HEF4013BP,652

NXP Semiconductors

Flip Flops DUAL D FLIP FLOP

Data Sheet

0-1: $0.24
1-25: $0.20
25-100: $0.17
100-250: $0.14
