Product Summary

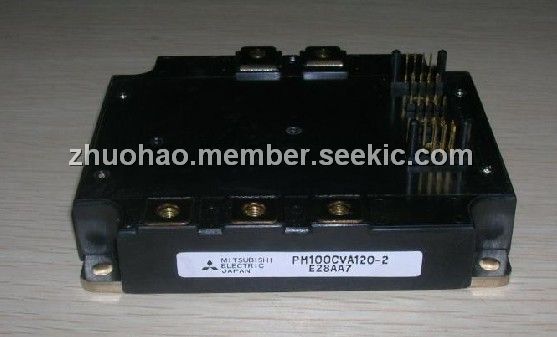

The PM100CVA120-2 is an Intelligent Power Module. It is designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The applications of the PM100CVA120-2 include Inverters, UPS, Motion/Servo Control, Power Supplies.

Parametrics

PM100CVA120 absolute maximum ratings: (1)Power Device Junction Temperature: -20 to 150 ℃; (2)Storage Temperature: -40 to 125 ℃; (3)Case Operating Temperature: -20 to 100 ℃; (4)Mounting Torque, M5 Mounting Screws: 2.5 ~ 3.5 N · m; (5)Mounting Torque, M5 Main Terminal Screws: 2.5 ~ 3.5 N · m; (6)Module Weight (Typical): 730 Grams; (7)Supply Voltage (Applied between P - N): 1000 Volts; (8)Supply Voltage Protected by SC (VD = 13.5 ~16.5V, Inverter Part, Tj = 125℃ Start): 800 Volts; (9)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.): 2500 Vrms.

Features

PM100CVA120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic: Short Circuit, Over Temperature, Under Voltage.

Diagrams

<IMG border=0 alt="PM100CVA120 diagram" src="http://www.seekic.com/uploadfile/ic-mfg/201283113724240.jpg">
