Product Summary
The VN896 is a mobile PCI express chipset. The VN896 is designed to provide users with unsurpassed visual clarity for notebooks, the VIA VN896 mobile IGP chipset offers the latest in VIA mobile technologies and is fully certified with the Microsoft Vista Basic Logo. Features include the highly efficient VIA V4 bus interface, advanced power management features, support for DDR2 and the industrys only simultaneous usage of single-pass multi-texturing and single-cycle trilinear filtering.
Parametrics
VN896 absolute maximum ratings: (1)Max Memory: 4GB; (2)PCI Express: One 16-lane and one 1-lane; (3)North/South Bridge Link: V-Link (533 MB/s); (4)Graphics Core: VIA Chrome9 HC IGP; (5)Dual Monitor Support: Supports LCD Panel (LVDS interface), TV display and CRT at the same time; (6)Video Ports: Three 12-bit Digital Video Ports; (7)Power Management: Supports dynamic CKE and dynamic clock gating.
Features
VN896 features: (1)Optimized Unified memory Architecture (UMA); (2)12-bit DVI transmitter; (3)24-bit Flat Panel Display Interface and Dual 12-bit Flat Panel Display Interface; (4)12-bit interface to external TV encoder for SDTV and HDTV display; (5)Support for VIA Vinyl Gold 8-channel HD Audio Controller & integrated VIA Vinyl 6-channel HD Audio; (6)Serial ATA support for up to 2 devices; (7)Integrated V-RAID 0, RAID 1, and RAID 0+1*, and JBOD (SATA) support; (8)Parallel ATA133/100/66 support for up to 4 devices; (9)Support for up to 8 USB 2.0/USB 1.1 ports; (10)Support for VIA Velocity Gigabit Ethernet companion controller & integrated 10/100 Mbps Fast Ethernet; (11)Advanced System Power Management Support.

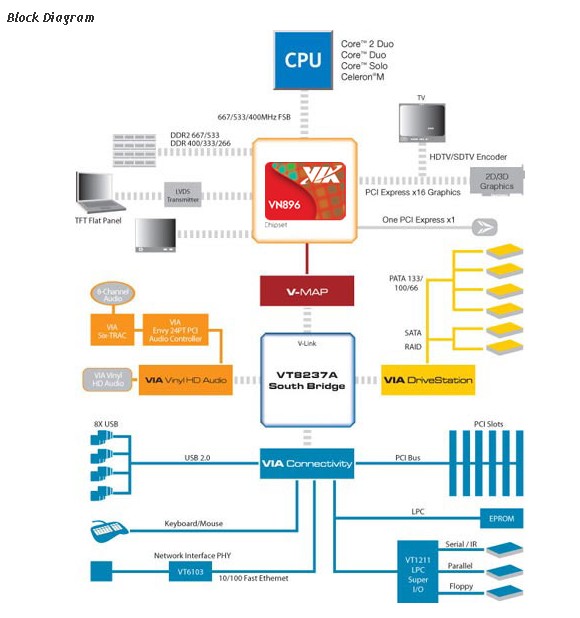

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 VN896 CD |
Other |
|
Data Sheet |
Negotiable |
|
||||
